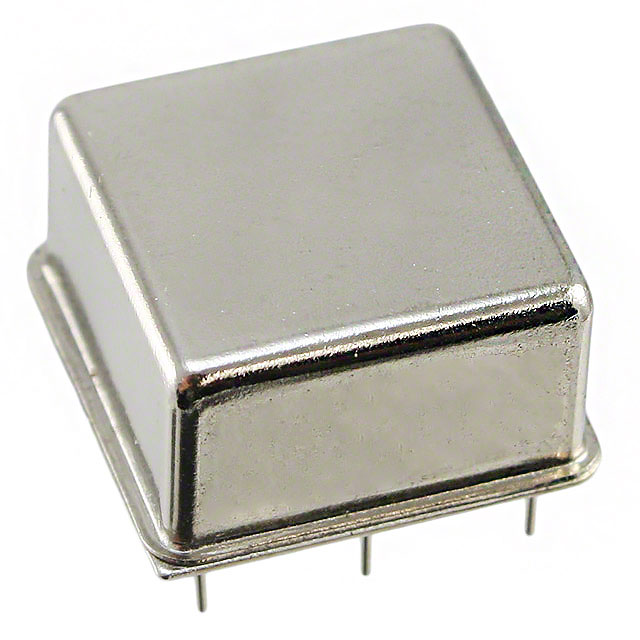

AOCJY2A-38.880MHZ-F-SW
ActiveAbracon LLC
XTAL OSC VCOCXO 38.8800MHZ SNWV
AOCJY2A-38.880MHZ-F-SW
ActiveAbracon LLC
XTAL OSC VCOCXO 38.8800MHZ SNWV
Description
General part information
AOCJY2A-38.880MHZ-F-SW
38.88 MHz VCOCXO Sine Wave Oscillator 5V 6-DIP (0.600", 15.24mm), 5 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | AOCJY2A-38.880MHZ-F-SW |
|---|---|
| Base Resonator | Crystal |
| Frequency | 38.88 MHz |
| Frequency Stability | 30 ppb |
| Height - Seated (Max) | 0.453 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Sine Wave |
| Package Features | 5 Leads |
| Package Length | 0.6 in |
| Package Name | 6-DIP |
| Package Width | 15.24 mm |
| Size / Dimension Length | 0.827 in |
| Size / Dimension Width | 0.827 in |
| Type | VCOCXO |
| Voltage - Supply | 5 VDC |
