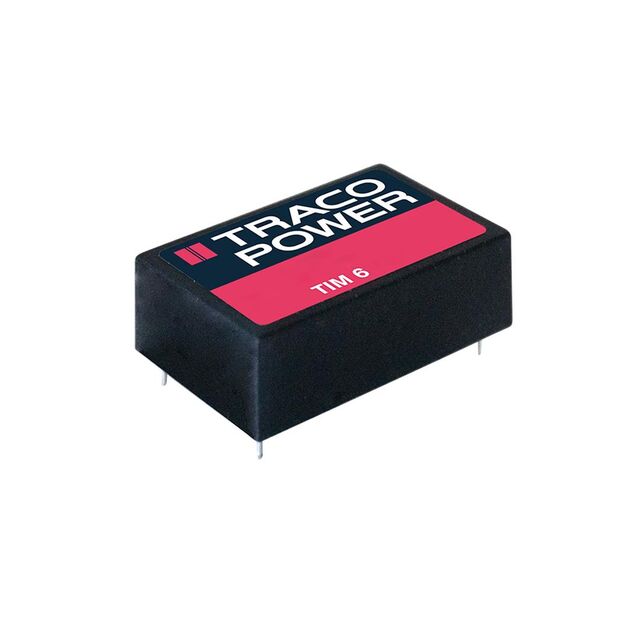

TIM 6-4811
ActiveTraco Power
6W MEDICAL DC/DC CONVERTER IN DI
TIM 6-4811
ActiveTraco Power
6W MEDICAL DC/DC CONVERTER IN DI
Description
General part information
TIM 6-4811
Isolated Module DC DC Converter 1 Output 5V 1.2A 36V - 75V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | TIM 6-4811 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, cURus |
| Current - Output (Max) | 1.2 A |
| Efficiency | 84 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 5 Leads |
| Package Name | 24-DIP Module |
| Power (Watts) | 6 W |
| Size / Dimension Height | 0.42 in |
| Size / Dimension Length | 1.25 in |
| Size / Dimension Width | 0.8 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) | 75 V |
| Voltage - Input (Min) | 36 V |
| Voltage - Isolation | 7 kV |
| Voltage - Output 1 | 5 V |
