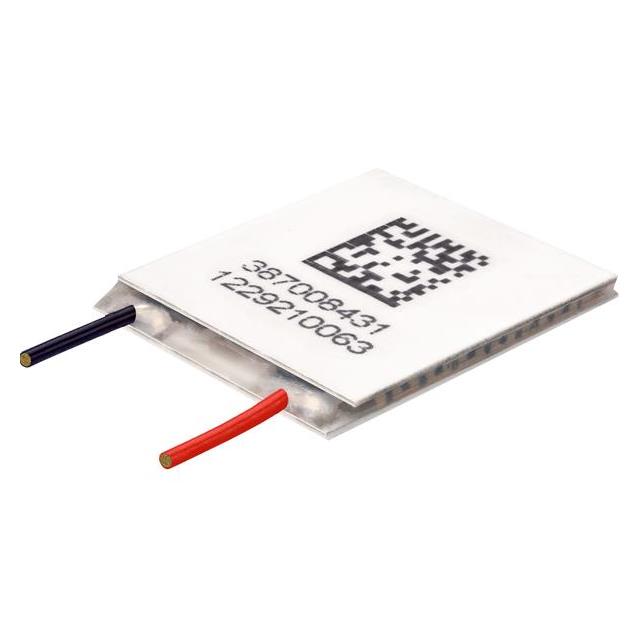

Specification	387008431

Current - Max	8 A
Delta Tmax	73.6 °C
Features	Silicone RTV, Lead Wires, Sealed
Height	2 mm
Maximum Power Dissipation (Qmax)	68.9 W
Number of Stages	1
Operating Temperature	120 °C
Resistance	1.75 Ohms
Size / Dimension Length	26.9 mm
Size / Dimension Shape	Rectangular
Size / Dimension Width	24.6 mm
Voltage - Max	14.9 V
