WM091,BK
ActiveSerpac

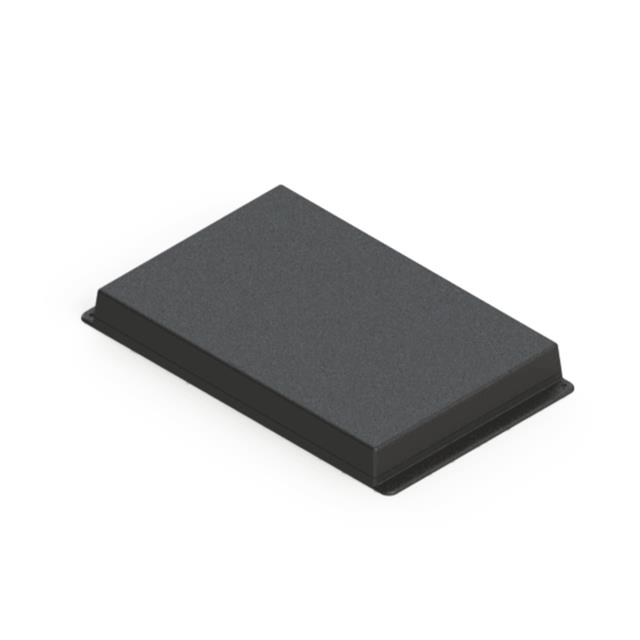

BOX ABS BLACK 9.5"L X 6.34"W
Deep-Dive with AI
Search across all available documentation for this part.
WM091,BK
ActiveSerpac
BOX ABS BLACK 9.5"L X 6.34"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WM091,BK |
|---|---|
| Area (L x W) | 60.2 in² |
| Area (L x W) | 388 cm² |
| Color | Black |
| Container Type | Box |
| Design | Cover Included |
| Features | PCB Supports, Wall Mount, Mounting Flange |
| Height [z] | 27.94 mm |
| Height [z] | 1.1 in |
| Material | Plastic, ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP40, NEMA 1 |
| Size / Dimension | 161.04 mm, 241.3 mm |
| Size / Dimension [x] | 9.5 " |
| Size / Dimension [y] | 6.34 " |
| Thickness | 2.54 mm |
| Thickness | 0.1 in |
| Weight | 0.553 lb |
| Weight | 250.84 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 15.43 | |
Description
General part information
WM091,BK
Box Plastic, ABS Black Cover Included 9.500" L x 6.340" W (241.30mm x 161.04mm) X 1.100" (27.94mm)
Documents
Technical documentation and resources
No documents available
