Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MHR0317SA107F70 | MHR0317SA Series |
|---|---|---|
| Composition | Thick Film | Thick Film |
| Features | High Voltage | High Voltage |
| Height - Seated (Max) [Max] [z] | 0.197 in | 0.197 in |
| Height - Seated (Max) [Max] [z] | 5 mm | 5 mm |
| Number of Terminations | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | Radial | Radial |
| Power (Watts) | 0.8 W | 0.8 W |
| Resistance | 100 MOhms | 10 - 500 MOhms |
| Size / Dimension [x] | 0.693 " | 0.693 " |
| Size / Dimension [x] | 17.6 mm | 17.6 mm |
| Size / Dimension [y] | 0.098 " | 0.098 " |
| Size / Dimension [y] | 2.5 mm | 2.5 mm |
| Tolerance | 1 % | 1 % |

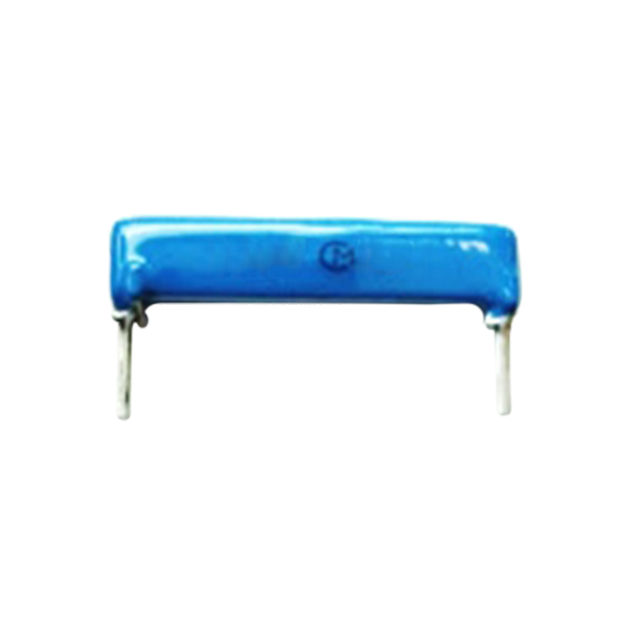

MHR0317SA Series
Thick Film Resistors - Through Hole
| Part | Package / Case | Resistance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Composition | Number of Terminations | Features | Power (Watts) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MHR0317SA106F70 | Radial | 10 MOhms | 0.693 " | 0.098 " | 2.5 mm | 17.6 mm | 125 °C | -40 °C | 0.197 in | 5 mm | Thick Film | 2 | High Voltage | 0.8 W | 1 % |
Murata Power Solutions Inc. MHR0317SA507F70 | Radial | 500 MOhms | 0.693 " | 0.098 " | 2.5 mm | 17.6 mm | 125 °C | -40 °C | 0.197 in | 5 mm | Thick Film | 2 | High Voltage | 0.8 W | 1 % |
Murata Power Solutions Inc. MHR0317SA107F70 | Radial | 100 MOhms | 0.693 " | 0.098 " | 2.5 mm | 17.6 mm | 125 °C | -40 °C | 0.197 in | 5 mm | Thick Film | 2 | High Voltage | 0.8 W | 1 % |
