CHM-9-50-80-36-XH00-F2-5

Obsolete

Luminus Devices Inc.

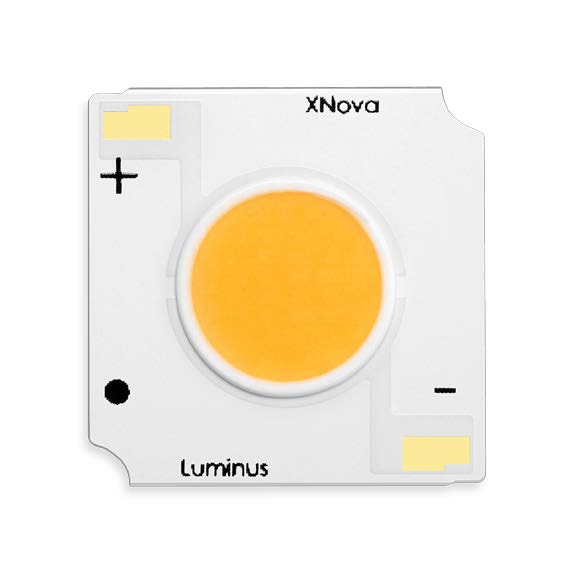

LED COB CHM9 CL WH SQUARE 5000K

Deep-Dive with AI

Search across all available documentation for this part.

CHM-9-50-80-36-XH00-F2-5

Obsolete

Luminus Devices Inc.

LED COB CHM9 CL WH SQUARE 5000K

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

CHM-9-50 Series

LED Lighting COBs Engines Modules Chip On Board (COB) CHM-9 White, Cool Square

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CHM-9-50-80-36-XH00-F2-5	CHM-9-50 Series

CCT (K)	5000 K	5000 K
CCT (K)	5-Step MacAdam Ellipse	5-Step MacAdam Ellipse
Color	Cool, White	Cool, White
Configuration	Square	Square
CRI (Color Rendering Index)	80	70 - 90
Current - Max [Max]	1.05 A	1.05 - 990 mA
Current - Test	720 mA	360 - 720 mA
Height [z]	1.37 mm	1.37 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	9 mm	9 - 9.6 mm
Lumens/Watt @ Current - Test	104 lm/W	102 - 148 lm/W
Luminous Flux @ Current/Temperature	2690 lm	1285 - 3800 lm
Size / Dimension [x]	19 mm	15 - 19 mm
Size / Dimension [y]	19 mm	15 - 19 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	36 V	34 - 36 V

CHM-9-50 Series

LED COB CHM9 CL WH SQUARE 5000K

Part	Height [z]	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Type	Current - Test	Viewing Angle	Lumens/Watt @ Current - Test	Temperature - Test	Color	Lens Type	CRI (Color Rendering Index)	Current - Max [Max]	Luminous Flux @ Current/Temperature	Configuration	CCT (K)	CCT (K)	Size / Dimension [x]	Size / Dimension [y]
Luminus Devices Inc. CHM-9-50-80-36-AC00-F2-5	1.37 mm	9 mm	35 V	Chip On Board (COB)	360 mA	120 °	119 lm/W	85 °C	Cool, White	Flat	80	720 mA	1500 lm	Square	5000 K	5-Step MacAdam Ellipse
Luminus Devices Inc. CHM-9-50-90-36-AA00-F2-3	1.37 mm	9 mm	35 V	Chip On Board (COB)	360 mA	120 °	102 lm/W	85 °C	Cool, White	Flat	90	545 mA	1285 lm	Square			15 mm	15 mm
Luminus Devices Inc. CHM-9-50-90-36-AA10-F3-3	1.37 mm	9 mm	35.5 V	Chip On Board (COB)	360 mA	120 °	117 lm/W	85 °C	Cool, White	Flat	90	720 mA	1500 lm	Square			15 mm	15 mm
Luminus Devices Inc. CHM-9-50-80-36-XH00-F1-5	1.37 mm	9 mm	36 V	Chip On Board (COB)	720 mA	120 °		85 °C	Cool, White	Flat	80	1.05 A		Square	5000 K	5-Step MacAdam Ellipse	19 mm	19 mm
Luminus Devices Inc. CHM-9-50-70-36-XH20-F3-3	1.37 mm	9 mm	35.5 V	Chip On Board (COB)	720 mA	120 °	148 lm/W	85 °C	Cool, White	Flat	70	1.08 A	3800 lm	Square			19 mm	19 mm
Luminus Devices Inc. CHM-9-50-90-36-AA00-F2-5	1.37 mm	9 mm	35 V	Chip On Board (COB)	360 mA	120 °	102 lm/W	85 °C	Cool, White	Flat	90	545 mA	1285 lm	Square	5000 K	5-Step MacAdam Ellipse	15 mm	15 mm
Luminus Devices Inc. CHM-9-50-80-36-AC00-F2-3	1.37 mm	9 mm	35 V	Chip On Board (COB)	360 mA	120 °	119 lm/W	85 °C	Cool, White	Flat	80	720 mA	1500 lm	Square
Luminus Devices Inc. CHM-9-50-80-36-XD20-F4-5	1.37 mm	9.6 mm	34 V	Chip On Board (COB)	360 mA	120 °	145 lm/W	85 °C	Cool, White	Flat	80	990 mA	1775 lm	Square	5000 K	5-Step MacAdam Ellipse	15 mm	15 mm
Luminus Devices Inc. CHM-9-50-80-36-XH20-F3-5	1.37 mm	9 mm	35.5 V	Chip On Board (COB)	720 mA	120 °	137 lm/W	85 °C	Cool, White	Flat	80	1.08 A	3510 lm	Square	5000 K	5-Step MacAdam Ellipse	19 mm	19 mm
Luminus Devices Inc. CHM-9-50-90-36-XD20-F4-3	1.37 mm	9.6 mm	34 V	Chip On Board (COB)	360 mA	120 °	126 lm/W	85 °C	Cool, White	Flat	90	990 mA	1535 lm	Square			15 mm	15 mm
