M7PXK-3710R
Active3M
D-SUB CABLE - MMM37K/MC37M/X
Deep-Dive with AI
Search across all available documentation for this part.
M7PXK-3710R
Active3M
D-SUB CABLE - MMM37K/MC37M/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M7PXK-3710R | M7PXK Series |
|---|---|---|
| 1st Connector | Plug, Male Pins | Plug, Male Pins |
| 2nd Connector | Individual Wire Leads | Individual Wire Leads |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 10 ft | 6 - 10 ft |
| Length | 3.05 m | 1.83 - 3.05 m |
| Number of Positions | 37 | 9 - 37 |
| Shielding | Unshielded | Unshielded |
| Type | DB37 | DB25, DB15, DB37, DB9 |
M7PXK Series
D-SUB CABLE - MMM25K/MC26G/X
| Part | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | 1st Connector | Type | 2nd Connector | Shielding | Length | Length | Number of Positions | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | 0.76 Ám | 30 Áin | Plug, Male Pins | DB25 | Individual Wire Leads | Unshielded | 10 ft | 3.05 m | |||
Gold | 0.76 Ám | 30 Áin | Plug, Male Pins | DB15 | Individual Wire Leads | Unshielded | 6 ft | 1.83 m | 15 | Multiple, Ribbon | |
Gold | 0.76 Ám | 30 Áin | Plug, Male Pins | DB37 | Individual Wire Leads | Unshielded | 6 ft | 1.83 m | 37 | Multiple, Ribbon | |
Gold | 0.76 Ám | 30 Áin | Plug, Male Pins | DB15 | Individual Wire Leads | Unshielded | 6 ft | 1.83 m | 15 | ||
Gold | 0.76 Ám | 30 Áin | Plug, Male Pins | DB15 | Individual Wire Leads | Unshielded | 10 ft | 3.05 m | 15 | Multiple, Ribbon | |
Gold | 0.76 Ám | 30 Áin | Plug, Male Pins | DB37 | Individual Wire Leads | Unshielded | 10 ft | 3.05 m | 37 | Multiple, Ribbon | |
Gold | 0.76 Ám | 30 Áin | Plug, Male Pins | DB25 | Individual Wire Leads | Unshielded | 6 ft | 1.83 m | Multiple, Ribbon | ||
Gold | 0.76 Ám | 30 Áin | Plug, Male Pins | DB25 | Individual Wire Leads | Unshielded | 10 ft | 3.05 m | Multiple, Ribbon | ||
Gold | 0.76 Ám | 30 Áin | Plug, Male Pins | DB37 | Individual Wire Leads | Unshielded | 10 ft | 3.05 m | 37 | ||
Gold | 0.76 Ám | 30 Áin | Plug, Male Pins | DB9 | Individual Wire Leads | Unshielded | 10 ft | 3.05 m | 9 | Multiple, Ribbon |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.50 | |
| 10 | $ 16.56 | |||
| 25 | $ 14.99 | |||
| 50 | $ 13.93 | |||
| 100 | $ 12.96 | |||
| 250 | $ 11.83 | |||
| 500 | $ 11.06 | |||
Description
General part information
M7PXK Series

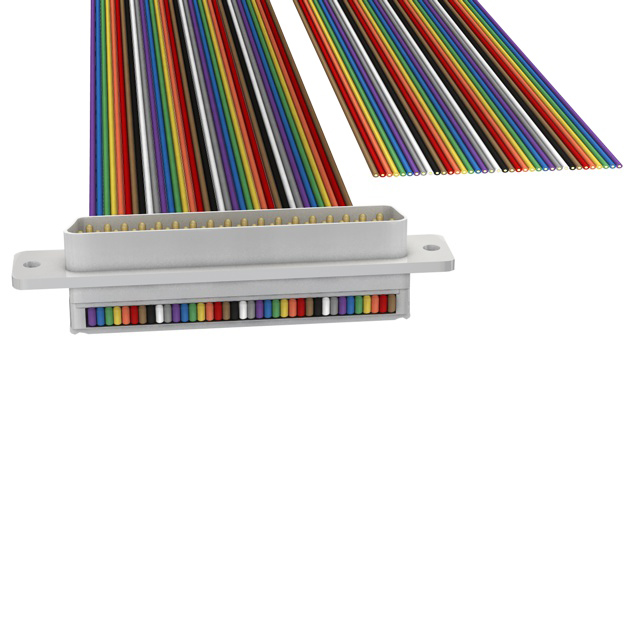

D-Sub Cable Assembly DB37 Multiple, Ribbon 10.00' (3.05m) Plug, Male Pins to Individual Wire Leads Unshielded
