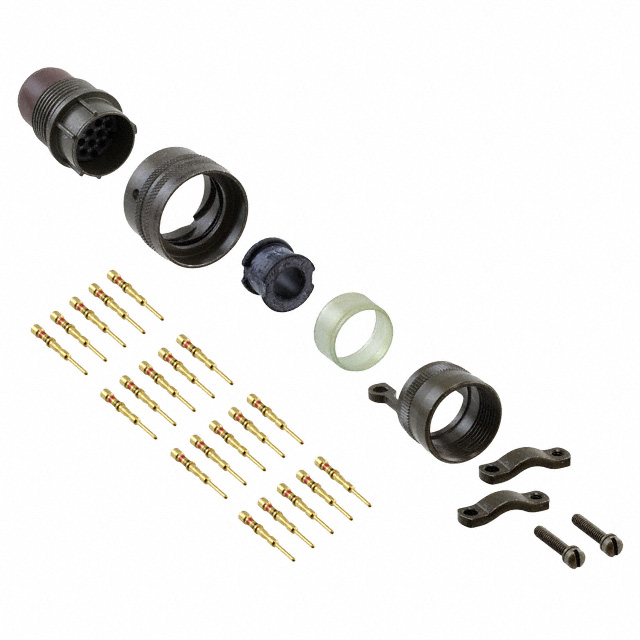

PT06SE-14-19P(SR)

Active

Amphenol Industrial Operations

CONN PLUG MALE 19POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

PT06SE-14-19P(SR)

Active

Amphenol Industrial Operations

CONN PLUG MALE 19POS GOLD CRIMP

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PT06SE-14-19P(SR)	PT06SE Series

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial	Communication Systems, Industrial, Mass Transit, Aerospace, Instrumentation, Military
Backshell Material, Plating	Olive Drab Cadmium, Aluminum	Olive Drab Cadmium, Aluminum, Black Zinc Cobalt, Electroless Nickel
Color	Olive Drab	Olive Drab, Black, Silver
Connector Type	Plug, Male Pins	Plug, Male Pins, Female Sockets, Plug Housing
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	-	Circular
Contact Size	-	16 - 20
Contact Size	-	2 - 37
Contact Type	-	Crimp
Current Rating (Amps)	7.5 A	7.5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Strain Relief	Strain Relief, Coupling Nut, Backshell, Cable Clamp
Housing Color	-	Olive Drab, Black
Ingress Protection	Environment Sealed	Environment Resistant, Environment Sealed
Insert Material	Neoprene	Neoprene
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	19	6 - 61
Number of Positions	-	16
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	Y, N, X, W
Primary Material	Metal	Metal
Qualification	MIL-DTL-26482 Series I	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium	Olive Drab Chromate over Cadmium, Chromate over Cadmium, Black Zinc Cobalt, Electroless Nickel, Zinc Cobalt
Shell Material	Aluminum	Aluminum
Shell Size - Insert	-	14 - 24
Shell Size - Insert	-	15 - 77
Shell Size - Insert	-	20
Shell Size - Insert	-	16
Shell Size - Insert	-	18-11, 8-33, 12-8, 10-6, 12-3, 14-5, 14-12
Shell Size - Insert [Max] [custom]	19	19
Shell Size - Insert [Min] [custom]	14	14
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Type	-	For Female Sockets, For Male Pins
Voltage Rating	-	600 - 1000 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 113.43
		10	$ 104.08
		25	$ 100.08
		50	$ 96.74
		100	$ 91.41

PT06SE Series

PTSE 41C 41#20 PIN PLUG

Part	Shell Material	Orientation	Backshell Material, Plating	Fastening Type	Number of Positions	Primary Material	Mounting Type	Ingress Protection	Qualification	Insert Material	Shielding	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Applications	Contact Finish - Mating	Contact Material	Features	Connector Type	Shell Finish	Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]	Current Rating (Amps)	Contact Shape	Note	Contact Type	Housing Color	Contact Size	Shell Size - Insert	Type	Voltage Rating	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Contact Size
Amphenol Industrial Operations PT06SE20-41PY-SR	Aluminum	Y	Aluminum, Olive Drab Cadmium	Bayonet Lock	41	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	20	41	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C
Amphenol Industrial Operations PT06SE-20-16S(SR)	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C	16	20	16	13 A
Amphenol Industrial Operations PT06SE-22-55PX(SR)	Aluminum	X	Aluminum, Olive Drab Cadmium	Bayonet Lock	55 positions	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded	22	55	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C
Amphenol Industrial Operations PT06SE18-11S-LC	Aluminum	N		Bayonet Lock	11		Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded						Backshell, Coupling Nut	Plug Housing	Chromate over Cadmium			-55 °C	125 °C					Circular	Contacts Not Included	Crimp	Olive Drab	16	18-11	For Female Sockets
Amphenol Industrial Operations PT06SE8-33P-SR	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C										8-33
Amphenol Industrial Operations PT06SE-18-32P(027)	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded	18	32	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Backshell, Coupling Nut	Male Pins, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C
Amphenol Industrial Operations PT06SE-22-55S(470)	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock	55 positions	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded	22	55	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C				7.5 A
Amphenol Industrial Operations PT06SE14-18S-SR	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	18	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	14	18	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C
Amphenol Industrial Operations PT06SE-22-77S(SR)LC	Aluminum	N		Bayonet Lock	14		Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	22	77				Cable Clamp, Coupling Nut	Plug Housing	Chromate over Cadmium			-55 °C	125 °C					Circular	Contacts Not Included	Crimp	Olive Drab			For Female Sockets
Amphenol Industrial Operations PT06SE8-33S-SR	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C										8-33
Amphenol Industrial Operations PT06SE-12-8P(SR)	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	8	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C				7.5 A						12-8
Amphenol Industrial Operations PT06SE-20-41P(SR)LC	Aluminum	N		Bayonet Lock	41		Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	20	41				Cable Clamp, Coupling Nut	Plug Housing	Chromate over Cadmium			-55 °C	125 °C					Circular	Contacts Not Included	Crimp	Olive Drab	20		For Male Pins
Amphenol Industrial Operations PT06SE22-55PX-SR-LC	Aluminum	X		Bayonet Lock	55 positions		Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	22	55				Cable Clamp, Coupling Nut	Plug Housing	Chromate over Cadmium			-55 °C	125 °C					Circular	Contacts Not Included	Crimp	Olive Drab	20		For Male Pins
Amphenol Industrial Operations PT06SE-10-6S	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	6	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy		Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C				7.5 A						10-6
Amphenol Industrial Operations PT06SE-16-26S(SR)	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	26	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded	16	26	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C				7.5 A
Amphenol Industrial Operations PT06SE-18-32S(SR)	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded	18	32	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C				7.5 A
Amphenol Industrial Operations PT06SE-24-61P(470)	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock	61	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded	24	61	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C				7.5 A
Amphenol Industrial Operations PT06SE-18-32SW(SR)	Aluminum	W	Aluminum, Olive Drab Cadmium	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded	18	32	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C
Amphenol Industrial Operations PT06SE12-8S-470	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock	8	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Gold	Copper Alloy		Female Sockets, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C										12-8		600 VAC
Amphenol Industrial Operations PT06SE14-19SW-476	Aluminum	W	Aluminum, Black Zinc Cobalt	Bayonet Lock	19	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Gold	Copper Alloy		Female Sockets, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C													19	14
Amphenol Industrial Operations PT06SE14-18PX-SR	Aluminum	X	Aluminum, Olive Drab Cadmium	Bayonet Lock	18	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	14	18	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C
Amphenol Industrial Operations PT06SE-14-18S(SR)	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	18	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	14	18	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C
Amphenol Industrial Operations PT06SE-16-26P(SR)	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	26	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded	16	26	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C				7.5 A
Amphenol Industrial Operations PT06SE12-10S-470	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock	10	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Gold	Copper Alloy		Female Sockets, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C
Amphenol Industrial Operations PT06SE-10-6P(470)	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock	6	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C				7.5 A						10-6
Amphenol Industrial Operations PT06SE-12-3S	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy		Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C				13 A						12-3
Amphenol Industrial Operations PT06SE-20-16SW(SR)	Aluminum	W	Aluminum, Olive Drab Cadmium	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C	16	20	16
Amphenol Industrial Operations PT06SE20-41P-SR	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	41	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	20	41	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C
Amphenol Industrial Operations PT06SE14-5S-424	Aluminum	N	Aluminum, Electroless Nickel	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Gold	Copper Alloy		Female Sockets, Plug	Electroless Nickel	Crimp	Silver	-55 °C	125 °C										14-5
Amphenol Industrial Operations PT06SE-12-8P	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	8	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Backshell, Coupling Nut	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C										12-8
Amphenol Industrial Operations PT06SE-24-61S(SR)	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	61	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded	24	61	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C				7.5 A
Amphenol Industrial Operations PT06SE-16-26SLC	Aluminum	N		Bayonet Lock	26		Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	16	26				Backshell, Coupling Nut	Plug Housing	Chromate over Cadmium			-55 °C	125 °C					Circular	Contacts Not Included	Crimp	Olive Drab	20		For Female Sockets
Amphenol Industrial Operations PT06SE-12-10P(470)	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock	10	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C				7.5 A
Amphenol Industrial Operations PT06SE16-26P-SR	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	26	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	16	26	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C
Amphenol Industrial Operations PT06SE20-39S-LC	Aluminum	N		Bayonet Lock	39		Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	20	39				Backshell, Coupling Nut	Plug Housing	Chromate over Cadmium			-55 °C	125 °C					Circular	Contacts Not Included	Crimp	Olive Drab	16, 20		For Female Sockets				2, 37
Amphenol Industrial Operations PT06SE-12-3P(SR)	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C				13 A						12-3
Amphenol Industrial Operations PT06SE14-5S-476-180	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Gold	Copper Alloy		Female Sockets, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C										14-5
Amphenol Industrial Operations PT06SE14-12P-SR	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	12	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C										14-12
Amphenol Industrial Operations PT06SE-20-16S(470)	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C	16	20	16	13 A
Amphenol Industrial Operations PT06SE-12-3PY(SR)	Aluminum	Y	Aluminum, Olive Drab Cadmium	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C										12-3
Amphenol Industrial Operations PT06SE14-15S-SR	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	15	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	14	15	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C
Amphenol Industrial Operations PT06SE-12-10S(SR)	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	10	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C				7.5 A
Amphenol Industrial Operations PT06SE14-5PY	Aluminum	Y	Aluminum, Olive Drab Cadmium	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Gold	Copper Alloy		Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C										14-5
Amphenol Industrial Operations PT06SE-12-10S(470)	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock	10	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C				7.5 A
Amphenol Industrial Operations PT06SE22-21PX	Aluminum	X	Aluminum, Olive Drab Cadmium	Bayonet Lock	21	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	22	21	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Gold	Copper Alloy		Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C
Amphenol Industrial Operations PT06SE-14-19P(SR)	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	19	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C				7.5 A									19	14
Amphenol Industrial Operations PT06SE16-8P-476-LC	Aluminum	N		Bayonet Lock	8		Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded						Cable Clamp, Coupling Nut	Plug Housing	Zinc Cobalt			-55 °C	125 °C					Circular	Contacts Not Included	Crimp	Black	16		For Male Pins
Amphenol Industrial Operations PT06SE22-21P-476	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock	21	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	22	21	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit	Gold	Copper Alloy		Male Pins, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C												1000 VAC
Amphenol Industrial Operations PT06SE22-21P-LC-476-180	Aluminum	N		Bayonet Lock	21		Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded	22	21				Backshell, Coupling Nut	Plug Housing	Zinc Cobalt			-55 °C	125 °C					Circular	Contacts Not Included	Crimp	Black	16		For Male Pins
Amphenol Industrial Operations PT06SE14-12S-SR	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	12	Metal	Free Hanging (In-Line)	Environment Resistant	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C										14-12
Amphenol Industrial Operations PT06SE18-32P(470)	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock		Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded	18	32	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C				7.5 A
Amphenol Industrial Operations PT06SE-14-18P(SR)	Aluminum	N	Aluminum, Olive Drab Cadmium	Bayonet Lock	18	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded	14	18	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Male Pins, Plug	Olive Drab Chromate over Cadmium	Crimp	Olive Drab	-55 °C	125 °C				7.5 A
Amphenol Industrial Operations PT06SE-16-8S(470)	Aluminum	N	Aluminum, Black Zinc Cobalt	Bayonet Lock	8	Metal	Free Hanging (In-Line)	Environment Sealed	MIL-DTL-26482 Series I	Neoprene	Unshielded			Aerospace, Industrial, Instrumentation, Mass Transit, Military	Gold	Copper Alloy	Strain Relief	Female Sockets, Plug	Black Zinc Cobalt	Crimp	Black	-55 °C	125 °C				13 A

Description

General part information

PT06SE Series

19 Position Circular Connector Plug, Male Pins Crimp
