3282-5SG-330
ActiveConxall/Switchcraft

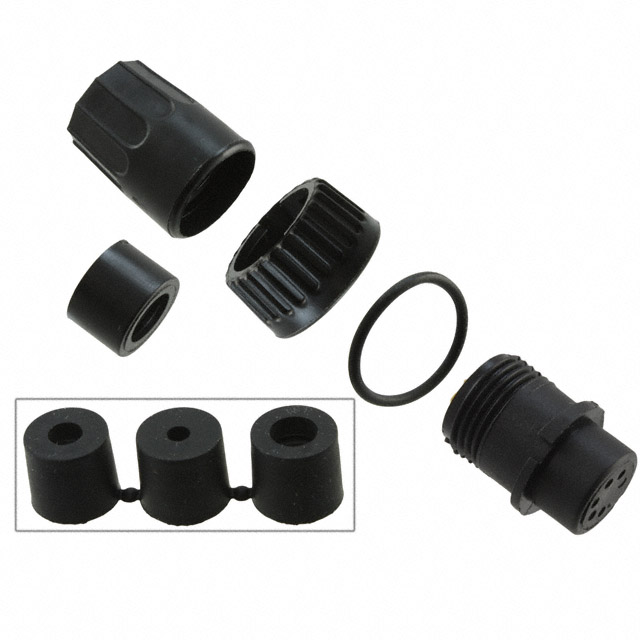

CONN PLUG FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
3282-5SG-330
ActiveConxall/Switchcraft
CONN PLUG FMALE 5P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3282-5SG-330 | 3282-5S Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 5.84 - 7.37 mm |
| Cable Opening | - | 4.57 mm |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 0.2 in |
| Cable Opening | - | 5.08 mm |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Cable Opening [Max] [diameter] | 0.32 in | 0.23 - 0.32 in |
| Cable Opening [Max] [diameter] | 8.13 mm | 8.13 mm |
| Cable Opening [Min] [diameter] | 7.62 mm | 5.33 - 7.62 mm |
| Cable Opening [Min] [diameter] | 0.3 in | 0.21 - 0.3 in |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell, Cable Clamp |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
3282-5S Series
CONN PLUG FMALE 5P GOLD SLDR CUP
| Part | Contact Finish - Mating | Voltage Rating | Current Rating (Amps) | Backshell Material, Plating | Mounting Type | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Orientation | Shielding | Color | Contact Material | Primary Material | Features | Ingress Protection | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Cable Opening [Max] [diameter] | Cable Opening [Min] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Max] [custom] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 3282-5SG-330 | Gold | 600 V | 5.6 A | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 7.62 mm | 0.32 in | 8.13 mm | 0.3 in | Keyed | Unshielded | Black | Brass | Plastic | Backshell | Weathertight | Bayonet Lock | -40 °C | 115 °C | Female Sockets, Plug | |||||||
Conxall/Switchcraft 3282-5SG-328 | Gold | 600 V | 5.6 A | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 7.11 mm | 0.29 in | 0.28 in | Keyed | Unshielded | Black | Brass | Plastic | Backshell | Weathertight | Bayonet Lock | -40 °C | 115 °C | Female Sockets, Plug | 7.37 mm | |||||||
Conxall/Switchcraft 3282-5SG-318 | Gold | 600 V | 5.6 A | Nylon, Polyamide (PA) | Free Hanging (In-Line) | Keyed | Unshielded | Black | Brass | Plastic | Backshell | Weathertight | Bayonet Lock | -40 °C | 115 °C | Female Sockets, Plug | 4.57 mm | 0.18 in | 0.2 in | 5.08 mm | |||||||
Conxall/Switchcraft 3282-5SG-528 | Gold | 600 V | 5.6 A | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 7.11 mm | 0.29 in | 0.28 in | Keyed | Unshielded | Black | Brass | Plastic | Backshell, Cable Clamp | Weathertight | Bayonet Lock | -40 °C | 115 °C | Female Sockets, Plug | 7.37 mm | |||||||
Conxall/Switchcraft 3282-5SG-515 | Gold | 600 V | 5.6 A | Nylon, Polyamide (PA) | Free Hanging (In-Line) | Keyed | Unshielded | Black | Brass | Plastic | Backshell, Cable Clamp | Weathertight | Bayonet Lock | -40 °C | 115 °C | Female Sockets, Plug | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | |||||||||
Conxall/Switchcraft 3282-5SG-321 | Gold | 600 V | 5.6 A | Nylon, Polyamide (PA) | Free Hanging (In-Line) | 5.33 mm | 0.23 in | 0.21 in | Keyed | Unshielded | Black | Brass | Plastic | Backshell | Weathertight | Bayonet Lock | -40 °C | 115 °C | Female Sockets, Plug | 5.84 mm | |||||||
Conxall/Switchcraft 3282-5SG-3DC | Gold | 600 V | 5.6 A | Nylon, Polyamide (PA) | Free Hanging (In-Line) | Keyed | Unshielded | Black | Brass | Plastic | Backshell | Weathertight | Bayonet Lock | -40 °C | 115 °C | Female Sockets, Plug |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.36 | |
| 10 | $ 13.90 | |||
| 25 | $ 13.03 | |||
| 50 | $ 12.41 | |||
| 100 | $ 11.82 | |||
| 300 | $ 10.94 | |||
| 500 | $ 10.55 | |||
Description
General part information
3282-5S Series
5 Position Circular Connector Plug, Female Sockets Solder Cup
