TDL105K035S1B-F
ObsoleteCornell Dubilier Knowles
CAP TANT 1UF 10% 35V RADIAL
TDL105K035S1B-F
ObsoleteCornell Dubilier Knowles
CAP TANT 1UF 10% 35V RADIAL
Description
General part information
TDL105K035S1B-F

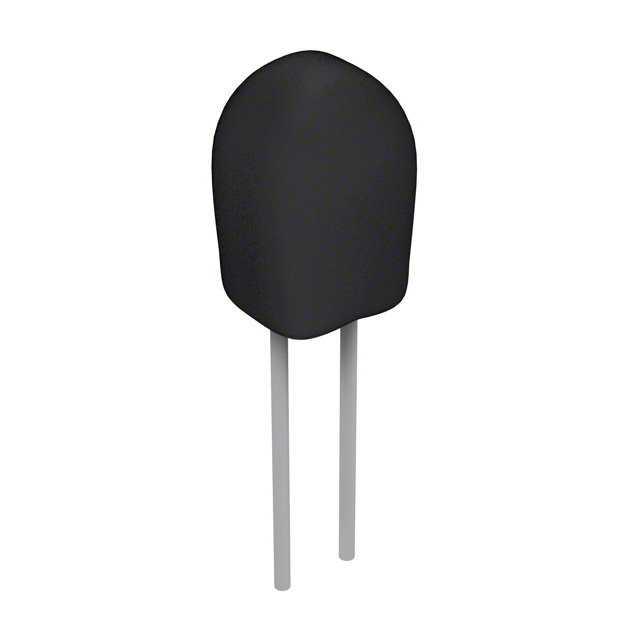

1 µF Conformal Coated Tantalum Capacitors 35 V Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | TDL105K035S1B-F |
|---|---|
| Capacitance | 1 µF |
| Features | General Purpose |
| Height - Seated (Max) | 0.3 in |
| Lead Spacing | 0.1 in |
| Manufacturer Size Code | B |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Diameter | 0.2 in |
| Tolerance | 10 % |
| Type | Conformal Coated |
| Voltage - Rated | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
