Description
General part information

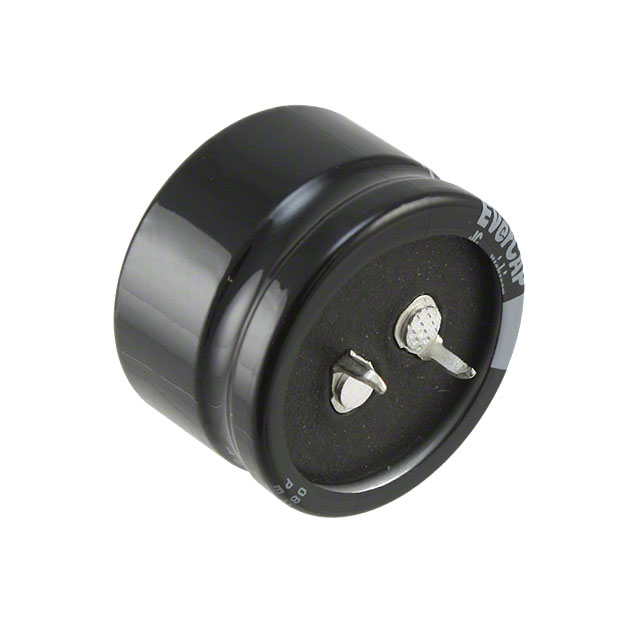

JJC0E826MELB
82 F (EDLC) Supercapacitor 2.5 V Radial, Can - Snap-In 60mOhm @ 1kHz 2000 Hrs @ 60°C
Technical Specifications
Parameters and characteristics for this part
| Specification | JJC0E826MELB |
|---|---|
| Capacitance | 82 F |
| ESR (Equivalent Series Resistance) | 60 mOhm |
| Height - Seated (Max) | 1.654 in |
| Lead Spacing | 0.394 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Snap-In, Radial |
| Size / Dimension Diameter | 1.181 in |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage - Rated | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
