60384-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 16-20AWG 0.250
60384-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 16-20AWG 0.250
Description
General part information
60384-1

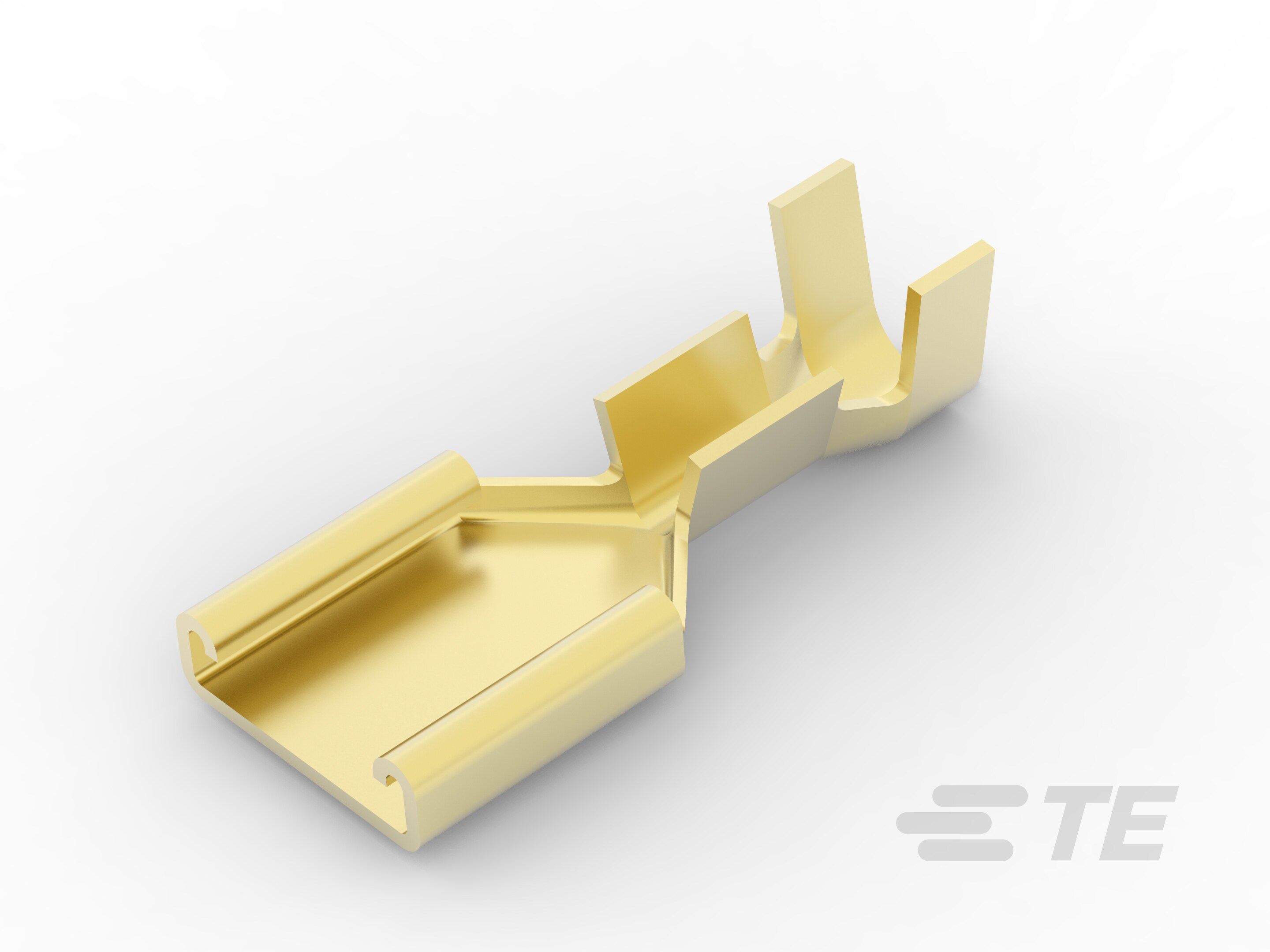

Quick Disconnect Receptacle, 20 – 16 AWG, .51 – 1.31 mm² Wire, 1000 – 3000 CMA, 6.35 mm [.25 in] Tab Width, Straight, Brass, AMPLIVAR
Technical Specifications
Parameters and characteristics for this part
| Specification | 60384-1 |
|---|---|
| Contact Material | Brass |
| Gender | Female |
| Insulation | Non-Insulated |
| Length - Overall | 0.69 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 0.28 in |
| Tab Thickness | 0.032 in |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
