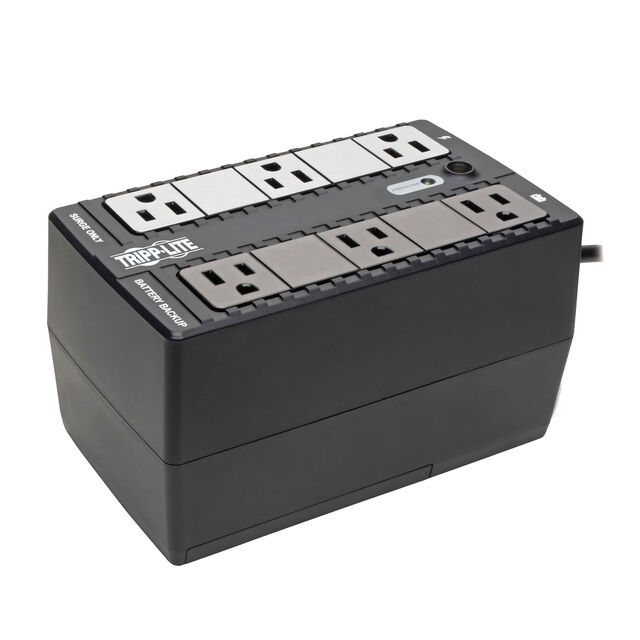

BC350
ActiveEaton Tripp Lite
UPS 350VA 180W 6OUT LOW PROF
BC350
ActiveEaton Tripp Lite
UPS 350VA 180W 6OUT LOW PROF
Description
General part information
BC350
UPS 350VA 180W 6OUT LOW PROF
Technical Specifications
Parameters and characteristics for this part
| Specification | BC350 |
|---|---|
| AC Outlet Types | UPS, Surge Only |
| AC Outlets (Count) | 6 count |
| AC Outlets (Surge Only) | 3 count |
| AC Outlets (UPS) | 3 count |
| Applications | Home Theater, Desktop |
| Backup Time - Max Load | 2.5 minutes |
| Cord Length | 6 ft |
| Form | Desktop |
| Height | 4.134 in |
| Input Connector | NEMA 5-15P |
| Output Connector | NEMA 5-15R |
| Power - Rated (VA) | 350 VA |
| Power - Rated (W) | 180 W |
| Size / Dimension Length | 7.283 in |
| Size / Dimension Width | 4.331 in |
| Type | Standby (No Regulation) |
| Voltage - Output | 120 V |
| Weight | 7.7 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
