FMC0238315-60
ActiveFairview Microwave
CBL ASSY SMAPLUG-BNCJACK 60
FMC0238315-60
ActiveFairview Microwave
CBL ASSY SMAPLUG-BNCJACK 60
Description
General part information
FMC0238315-60

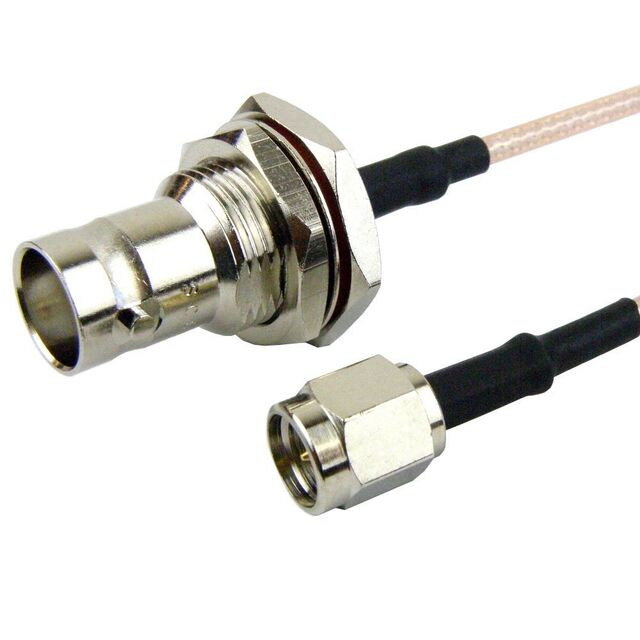

Cable Assembly Coaxial BNC to SMA RG-316 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC0238315-60 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 316 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, BNC |
