MSCD165-16
ObsoleteMicrosemi Corporation

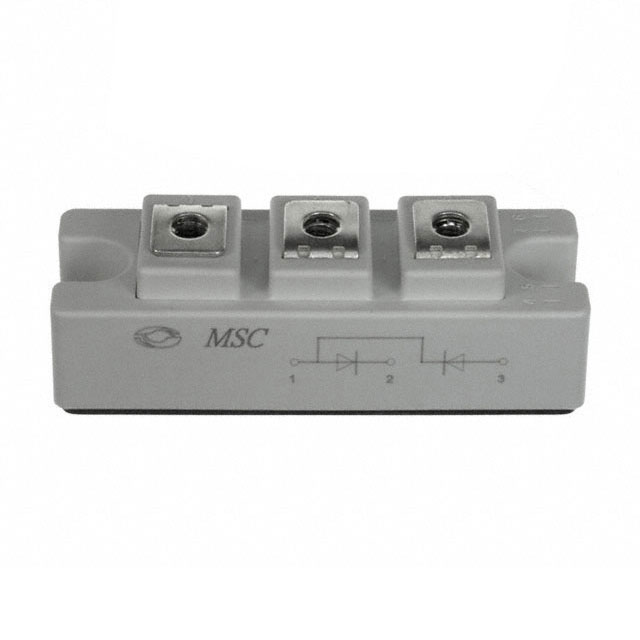

DIODE MODULE GP 1600V 165A SD2
MSCD165-16
ObsoleteMicrosemi Corporation
DIODE MODULE GP 1600V 165A SD2
Description
General part information
MSCD165-16
Diode Array 1 Pair Series Connection 1600 V 165A Chassis Mount D2
Technical Specifications
Parameters and characteristics for this part
| Specification | MSCD165-16 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 165 A |
| Current - Reverse Leakage | 9 mA |
| Diode Configuration | Series Connection |
| Diode Pair Count | 1 pair |
| Mounting Type | Chassis Mount |
| Package / Case | D2 |
| Package Name | SD2 |
| Speed | Standard Recovery |
| Speed - Fast Recovery (Minimum) | 200 mA, 500 ns |
| Speed - Recovery Current | 200 mA, 200 mA |
| Speed - Recovery Time | 500 ns |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1600 V |
| Voltage - Forward (Vf) (Max) | 1.4 V |
