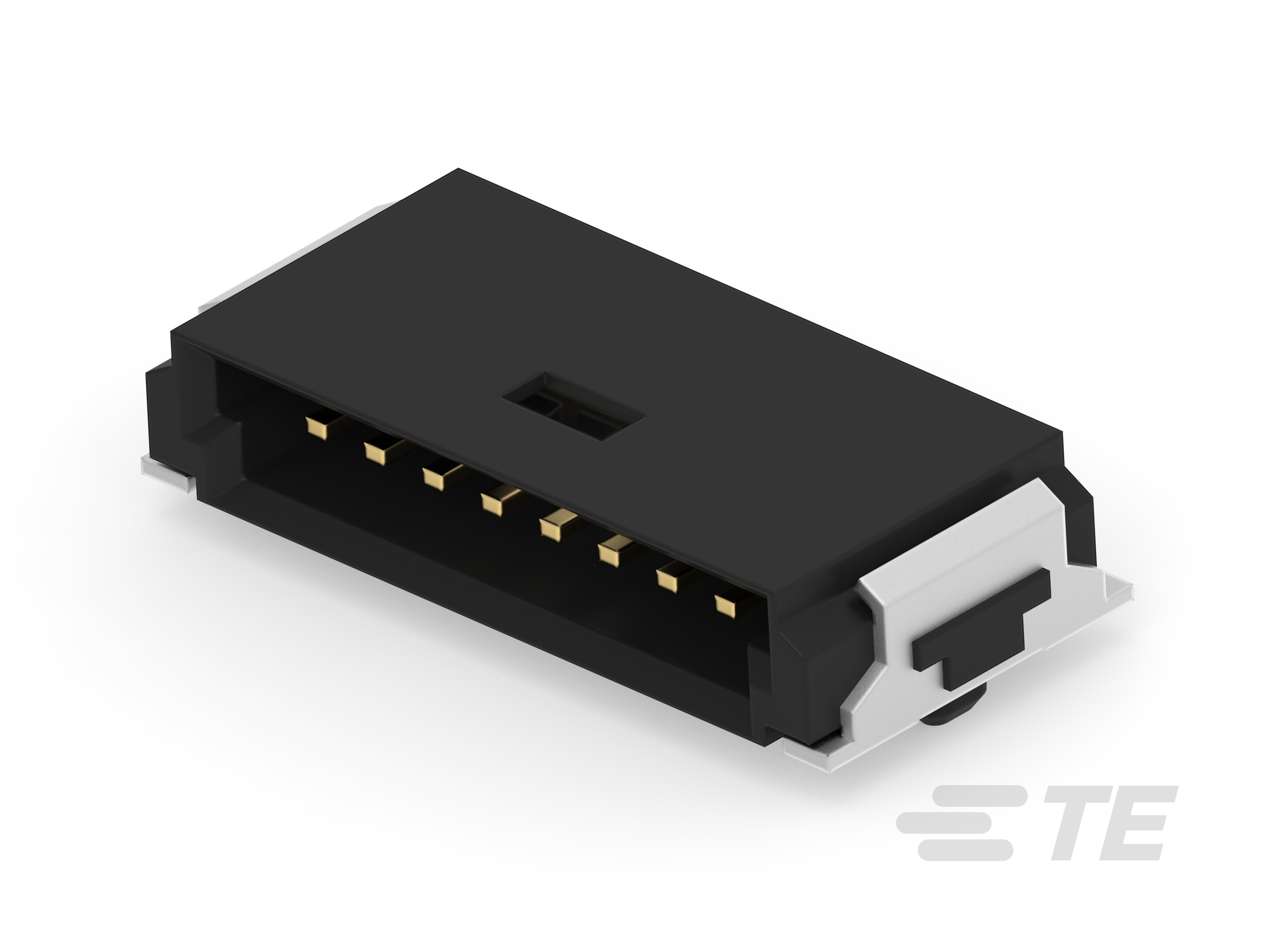

Specification	214014-E

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Mating	0.098 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	5.4 A
Fastening Type	Latch Holder
Features	Board Guide, Solder Retention
Insulation Color	Black
Insulation Height	0.117 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Right Angle, Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.05 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

ERNI MiniBridge Series

...

Part	Pitch - Mating	Contact Finish - Mating	Shrouding	Termination	Number of Positions	Number of Rows	Contact Finish - Post	Contact Material	Insulation Material	Contact Length - Mating	Contact Shape	Material Flammability Rating	Insulation Color	Number of Positions Loaded	Contact Type	Insulation Height	Style	Mounting Type	Current Rating (Per Contact)	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Connector Type	Features	Accessory Type	Material	Color	Shell Size - Insert	For Use With/Related Products	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Wire Type	Contact Finish	Pitch	Cable Termination	Wire Gauge
TE Connectivity AMP Connectors 474810-E	0.05 in	Gold	Shrouded - 4 Wall	Solder	6	1	Tin	Copper Alloy	Liquid Crystal Polymer (LCP)	0.087 in	Square	UL94 V-0	Black	All	Male Pin	0.137 in	Board Cable/Wire	Right Angle Surface Mount	5.4 A	150 °C	-55 °C	Latch Holder	Header	Board Guide Solder Retention
TE Connectivity AMP Connectors 284696-E	0.05 in	Gold	Shrouded - 4 Wall	Solder	3	1	Gold	Phosphor Bronze	Liquid Crystal Polymer (LCP)		Square	UL94 V-0	Black	All	Male Pin		Board Cable/Wire	Through Hole	5.4 A				Header
TE Connectivity AMP Connectors 474125-E	0.05 in	Gold	Shrouded - 4 Wall	Solder	2	1	Tin	Copper Alloy	Liquid Crystal Polymer (LCP)	0.087 in	Square	UL94 V-0	Black	All	Male Pin	0.207 in	Board Cable/Wire	Surface Mount	5.4 A	150 °C	-55 °C	Latch Holder	Header	Board Guide Pick and Place Solder Retention
TE Connectivity AMP Connectors 394905-E																									Nut	Steel	Silver	M10	Circular Connectors
TE Connectivity AMP Connectors 839015-E
TE Connectivity AMP Connectors 224393-E					2	1									Female Socket			Free Hanging (In-Line)				Locking Ramp	Receptacle				Black			26 AWG	24 AWG	Discrete Ribbon Cable	Gold	0.05 in	IDC
TE Connectivity AMP Connectors 394895-E					4	1									Female Socket			Free Hanging (In-Line) Right Angle				Latch Lock	Receptacle									Discrete Ribbon Cable		0.05 in	IDC	22 AWG
TE Connectivity AMP Connectors 384529-E					2	1									Female Socket			Free Hanging (In-Line) Right Angle				Latch Lock	Receptacle				Red					Discrete Ribbon Cable		0.05 in	IDC	22 AWG
TE Connectivity AMP Connectors 474143-E					4	1									Female Socket			Free Hanging (In-Line)				Latch Lock	Receptacle									Discrete Ribbon Cable		0.05 in	IDC	22 AWG
TE Connectivity AMP Connectors 839033-E
