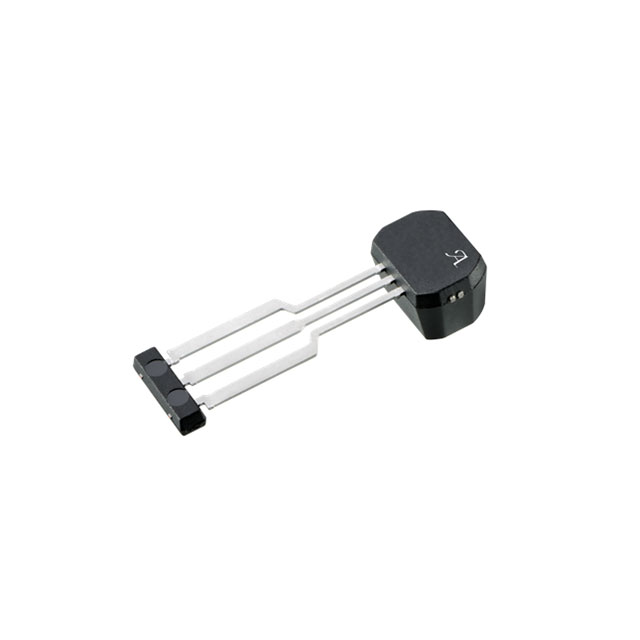

ATS16351PSMGTN
ActiveAllegro MicroSystems
SELF-CALIBRATING TPOSGMR CAMSHAF
ATS16351PSMGTN
ActiveAllegro MicroSystems
SELF-CALIBRATING TPOSGMR CAMSHAF
Description
General part information
ATS16351PSMGTN
Magnetic GMR (Giant Magnetoresistive) Digital PC Pin 3-SIP Module, Formed Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | ATS16351PSMGTN |
|---|---|
| Frequency | 8 kHz |
| Operating Temperature (Max) | 160 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | Digital |
| Package / Case | 3-SIP Module, Formed Leads |
| Termination Style | PC Pin |
| Type | GMR (Giant Magnetoresistive) |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 3.6 V |
