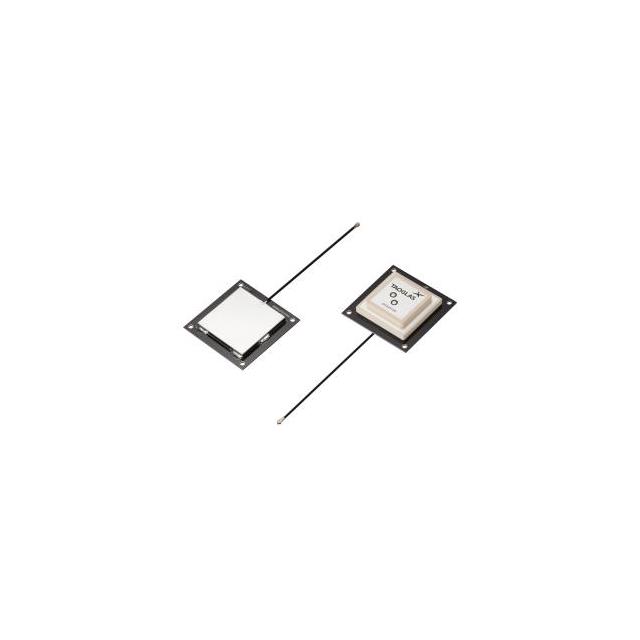

RF ANTENNA, 1.569 TO 1.61GHZ, GPS/GNSS/GLONASS/GALILEO/BEIDOU/LNA/QZSS/SBAS, 3.44DBI, 50 OHM
AHP2258.07.0060A
ActiveTaoglas Limited
RF ANTENNA, 1.569 TO 1.61GHZ, GPS/GNSS/GLONASS/GALILEO/BEIDOU/LNA/QZSS/SBAS, 3.44DBI, 50 OHM
Description
General part information
AHP2258.07.0060A
RF ANTENNA
Technical Specifications
Parameters and characteristics for this part
| Specification | AHP2258.07.0060A |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GPS, Galileo, GLONASS, BEIDOU, GNSS |
| Features | Cable, LNA, Filter, 60mm |
| Frequency (Center/Band) | 1.249GHz, 1.227GHz, 1.589GHz, 1.575GHz, 1.561GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.237 GHz |
| Frequency Range (Band 1) Minimum | 1.217 GHz |
| Frequency Range (Band 2) Maximum | 1.258 GHz |
| Frequency Range (Band 2) Minimum | 1.241 GHz |
| Frequency Range (Band 3) Maximum | 1.563 GHz |
| Frequency Range (Band 3) Minimum | 1.559 GHz |
| Frequency Range (Band 4) Maximum | 1.587 GHz |
| Frequency Range (Band 4) Minimum | 1.563 GHz |
| Frequency Range (Band 5) Maximum | 1.61 GHz |
| Frequency Range (Band 5) Minimum | 1.569 GHz |
| Gain | 3.08 dBi, 1.4 dBi, 3.44 dBi, 2.56 dBi |
| Height (Max) | 0.488 in |
| Mounting Type | Connector Mount |
| Number of Bands | 5 |
| RF Family/Standard | Navigation |
| Termination | I-PEX MHFI |
