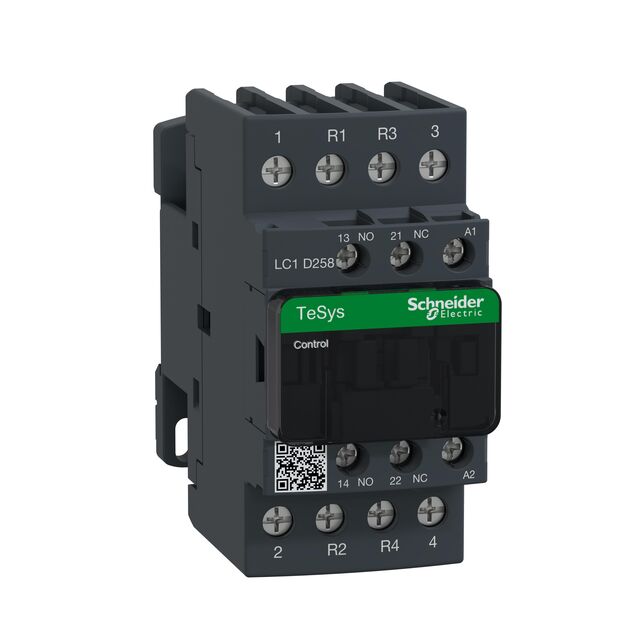

LC1D258P7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, 2NO/2NC, 25A, 230VAC
LC1D258P7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, 2NO/2NC, 25A, 230VAC
Description
General part information
LC1D258P7
CONTACTOR, 2NO/2NC, 25A, 230VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1D258P7 |
|---|---|
| Coil Voltage | 230 VDC |
| Contact Form | B, PST-2NO/2NC, Form, A, 2 |
| Contact Rating (Current) | 40 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 184 VDC |
| Must Release Voltage | 69 VAC |
| Operate Time | 22 ms |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Pin Count | 4 |
| Release Time | 19 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
