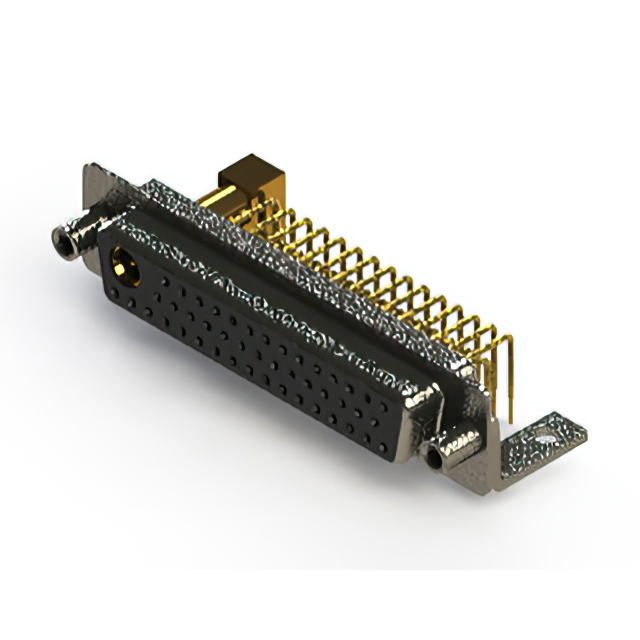

630-47W1240-5NE

Active

EDAC Inc.

CONN D-SUB RCPT 47POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

630-47W1240-5NE

Active

EDAC Inc.

CONN D-SUB RCPT 47POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	630-47W1240-5NE

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Mounting Brackets
Flange Feature	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	47
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	5 (DD, D), 47W1
Termination	Solder
Voltage Rating	125 VDC

630-47W Series

...

Part	Dielectric Material	Connector Type	Contact Type	Color	Number of Positions [custom]	Number of Positions	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Flange Feature	Backset Spacing	Backset Spacing	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Termination	Mounting Type	Material Flammability Rating	Connector Style	Current Rating (Amps)	Contact Material	Shell Size, Connector Layout	Features	Shell Material, Finish	Contact Finish Thickness	Current Rating (Amps)
EDAC Inc. 630-47W1650-2T2	Polyester Thermoplastic	Receptacle Female Sockets	Signal and Power	Black	1	47	125 VDC	-55 °C	125 °C	3	Housing/Shell (4-40)	9.4 mm	0.37 in	Gold	0.76 Ám	30 Áin	Solder	Through Hole Right Angle	UL94 V-0	Combo D-Sub	5 A 20 A	Copper Alloy	47W1 5 (DD D)
EDAC Inc. 630-47W1640-5N5	Polyester Thermoplastic	Receptacle Female Sockets	Coax Signal	Black		47	125 VDC	-55 °C	125 °C	3	4-40	9.4 mm	0.37 in	Gold	0.76 Ám	30 Áin	Solder	Through Hole Right Angle	UL94 V-0	Combo D-Sub		Copper Alloy	47W1 5 (DD D)	Board Lock Mounting Brackets	Nickel Plated Steel
EDAC Inc. 630-47W1240-1TE	Polyester Thermoplastic	Receptacle Female Sockets	Signal and Power	Black	1	47	125 VDC	-55 °C	125 °C	3	M3	9.4 mm	0.37 in	Gold			Solder	Through Hole Right Angle	UL94 V-0	Combo D-Sub		Copper Alloy	47W1 5 (DD D)	Mounting Brackets		Flash	10A 5A
EDAC Inc. 630-47W1240-1N3	Polyester Thermoplastic	Receptacle Female Sockets	Signal and Power	Black	1	47	125 VDC	-55 °C	125 °C	3	Housing/Shell (4-40)	9.4 mm	0.37 in	Gold			Solder	Through Hole Right Angle	UL94 V-0	Combo D-Sub		Copper Alloy	47W1 5 (DD D)	Board Lock Mounting Brackets	Nickel Plated Steel	Flash	10A 5A
EDAC Inc. 630-47W1640-2T4	Polyester Thermoplastic	Receptacle Female Sockets	Signal and Power	Black	1	47	125 VDC	-55 °C	125 °C	3	Housing/Shell (4-40)	9.4 mm	0.37 in	Gold	0.76 Ám	30 Áin	Solder	Through Hole Right Angle	UL94 V-0	Combo D-Sub	5 A 20 A	Copper Alloy	47W1 5 (DD D)	Mounting Brackets
EDAC Inc. 630-47W1240-7NE	Polyester Thermoplastic	Receptacle Female Sockets	Coax Signal	Black		47	125 VDC	-55 °C	125 °C	3	M3	9.4 mm	0.37 in	Gold			Solder	Through Hole Right Angle	UL94 V-0	Combo D-Sub		Copper Alloy	47W1 5 (DD D)	Mounting Brackets	Nickel Plated Steel	Flash
EDAC Inc. 630-47W1240-7T4	Polyester Thermoplastic	Receptacle Female Sockets	Coax Signal	Black		47	125 VDC	-55 °C	125 °C	3	Housing/Shell (4-40)	9.4 mm	0.37 in	Gold			Solder	Through Hole Right Angle	UL94 V-0	Combo D-Sub		Copper Alloy	47W1 5 (DD D)	Mounting Brackets		Flash
EDAC Inc. 630-47W1240-7T6	Polyester Thermoplastic	Receptacle Female Sockets	Coax Signal	Black		47	125 VDC	-55 °C	125 °C	3	4-40	9.4 mm	0.37 in	Gold			Solder	Through Hole Right Angle	UL94 V-0	Combo D-Sub		Copper Alloy	47W1 5 (DD D)			Flash
EDAC Inc. 630-47W1640-7N6	Polyester Thermoplastic	Receptacle Female Sockets	Coax Signal	Black		47	125 VDC	-55 °C	125 °C	3	4-40	9.4 mm	0.37 in	Gold	0.76 Ám	30 Áin	Solder	Through Hole Right Angle	UL94 V-0	Combo D-Sub		Copper Alloy	47W1 5 (DD D)		Nickel Plated Steel
EDAC Inc. 630-47W1240-5NE	Polyester Thermoplastic	Receptacle Female Sockets	Coax Signal	Black		47	125 VDC	-55 °C	125 °C	3	M3	9.4 mm	0.37 in	Gold			Solder	Through Hole Right Angle	UL94 V-0	Combo D-Sub		Copper Alloy	47W1 5 (DD D)	Mounting Brackets	Nickel Plated Steel	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 21.24

Description

General part information

630-47W Series

47 (46 + 1 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
