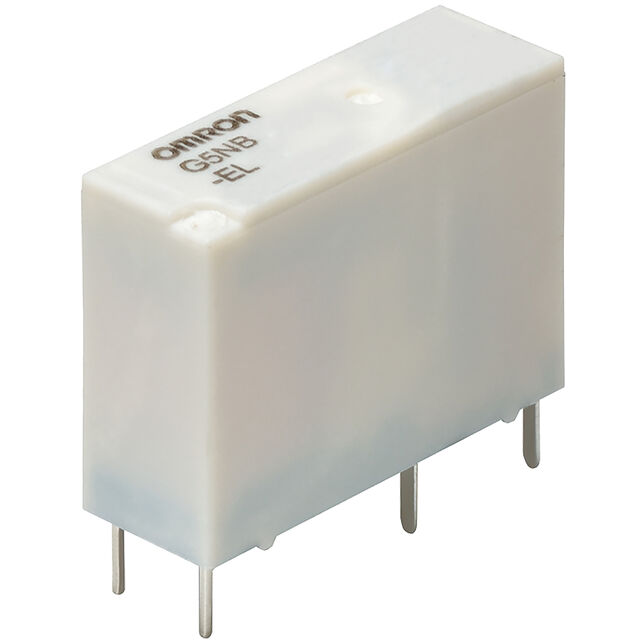

G5NB-1A4-EL-HA-CF-SP DC24
ActiveOmron Electronics Inc-EMC Div
105C, SPST 5A, 250VAC PCB RELAY
G5NB-1A4-EL-HA-CF-SP DC24
ActiveOmron Electronics Inc-EMC Div
105C, SPST 5A, 250VAC PCB RELAY
Description
General part information
G5NB-1A4-EL-HA-CF-SP DC24
Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | G5NB-1A4-EL-HA-CF-SP DC24 |
|---|---|
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO |
| Contact Rating (Current) | 5 A |
| Form A Count | 1 |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Switching Voltage AC (Nominal) | 250 VAC |
| Switching Voltage DC (Nominal) | 30 VDC |
| Termination Style | PC Pin |
