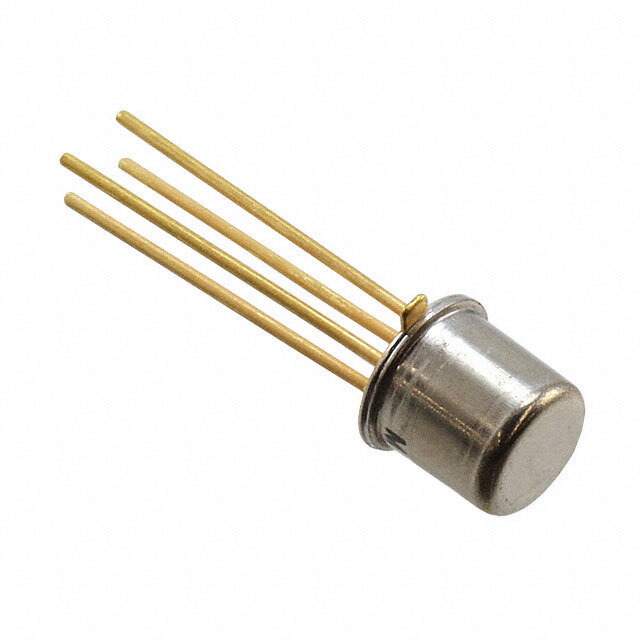

3N261
Optoisolator Transistor Output 1000VDC 1 Channel TO-72-4
Technical Specifications
Parameters and characteristics for this part
| Specification | 3N261 |
|---|---|
| Current - DC Forward (If) (Max) | 40 mA |
| Current - Output / Channel | 30 mA |
| Current Transfer Ratio (Min) | 5 % |
| Input Type | DC |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Output Type | Transistor |
| Package / Case | TO-206AF, TO-72-4 Metal Can |
| Package Name | TO-72-4 |
| Rise / Fall Time (Max) | 10 µs |
| Rise / Fall Time (Typ) | 20 µs |
| Vce Saturation (Max) | 300 mV |
| Voltage - Forward (Vf) (Max) | 1.5 V |
| Voltage - Isolation | 1000 Vrms |
| Voltage - Output (Max) | 30 V |
