Description
General part information

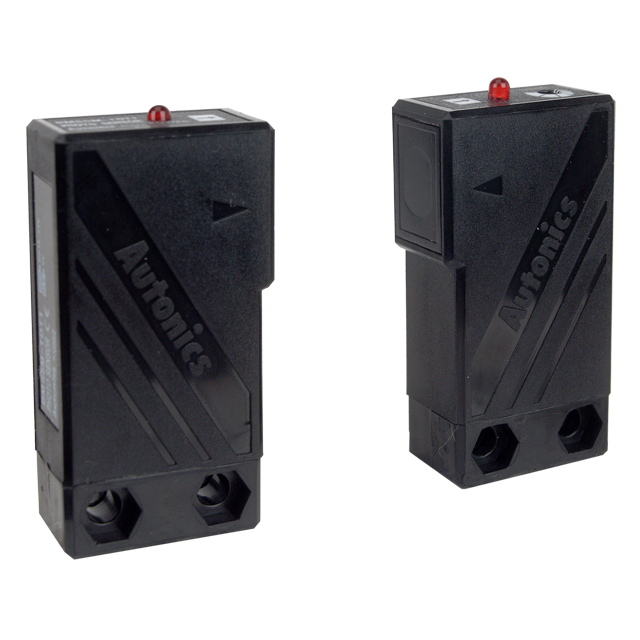

BMS5M-TDT-P
Through-Beam Optical Sensor 196.850" (5m) PNP - Open Collector, Light-ON\Dark-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | BMS5M-TDT-P |
|---|---|
| Adjustment Type | Fixed |
| Cable Length | 78.7 in, 78.74 in |
| Connection Method | Cable |
| Light Source | Infrared |
| Light Source Wavelength (Infrared) | 940 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Output Configuration | Light-ON\Dark-ON, PNP - Open Collector |
| Response Time | 1 ms |
| Sensing Distance | 196.85 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
