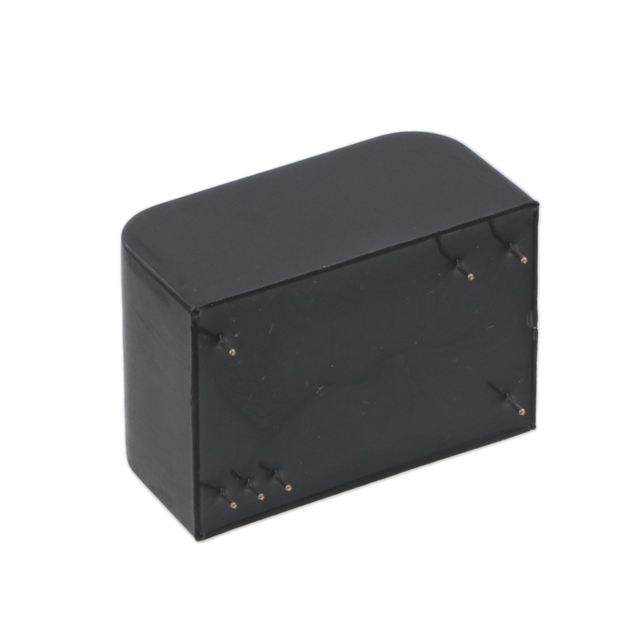

BPWX 4-08-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 4W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BPWX 4-08-00

Active

Cita Technologies, LLC.

AC/DC CONVERTER 8V 4W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BPWX 4-08-00	BPWX 4 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB, cURus	CB, cURus
Current - Output (Max)	-	70 - 500 mA
Efficiency	70 %	70 %
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-DIP Module	7-DIP Module
Power (Watts)	-	1.9 - 4.5 W
Size / Dimension [x]	48.5 mm	48.5 mm
Size / Dimension [x]	1.91 in	1.91 in
Size / Dimension [y]	33.3 mm	33.3 mm
Size / Dimension [y]	1.31 "	1.31 "
Size / Dimension [z]	0.98 in	0.98 in
Size / Dimension [z]	24.9 mm	24.9 mm
Type	Enclosed	Enclosed
Voltage - Input [Max]	308 VAC	308 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output 1	8 V	8 - 24 V

BPWX 4 Series

AC/DC CONVERTER 14V 4W

Part	Package / Case	Applications	Approval Agency	Mounting Type	Efficiency	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Type	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output (Max)	Power (Watts)
Cita Technologies, LLC. BPWX 4-14-00	7-DIP Module	ITE (Commercial)	CB, cURus	Through Hole	70 %	48.5 mm	1.91 in	33.3 mm	0.98 in	1.31 "	24.9 mm	14 V	85 °C	-40 °C	1	Enclosed	90 VAC	308 VAC
Cita Technologies, LLC. BPWX 4-14-50	7-DIP Module	ITE (Commercial)	CB, cURus	Through Hole	70 %	48.5 mm	1.91 in	33.3 mm	0.98 in	1.31 "	24.9 mm	14 V	85 °C	-40 °C	2	Enclosed	90 VAC	308 VAC	83 mA, 285 mA	2.6 W
Cita Technologies, LLC. BPWX 4-14-33	7-DIP Module	ITE (Commercial)	CB, cURus	Through Hole	70 %	48.5 mm	1.91 in	33.3 mm	0.98 in	1.31 "	24.9 mm	14 V	85 °C	-40 °C	2	Enclosed	90 VAC	308 VAC	70 mA, 285 mA	1.9 W
Cita Technologies, LLC. BPWX 4-08-00	7-DIP Module	ITE (Commercial)	CB, cURus	Through Hole	70 %	48.5 mm	1.91 in	33.3 mm	0.98 in	1.31 "	24.9 mm	8 V	85 °C	-40 °C	1	Enclosed	90 VAC	308 VAC
Cita Technologies, LLC. BPWX 4-08-33	7-DIP Module	ITE (Commercial)	CB, cURus	Through Hole	70 %	48.5 mm	1.91 in	33.3 mm	0.98 in	1.31 "	24.9 mm	8 V	85 °C	-40 °C	2	Enclosed	90 VAC	308 VAC	160 mA, 500 mA	2.9 W
Cita Technologies, LLC. BPWX 4-24-00	7-DIP Module	ITE (Commercial)	CB, cURus	Through Hole	70 %	48.5 mm	1.91 in	33.3 mm	0.98 in	1.31 "	24.9 mm	24 V	85 °C	-40 °C	1	Enclosed	90 VAC	308 VAC
Cita Technologies, LLC. BPWX 4-08-50	7-DIP Module	ITE (Commercial)	CB, cURus	Through Hole	70 %	48.5 mm	1.91 in	33.3 mm	0.98 in	1.31 "	24.9 mm	8 V	85 °C	-40 °C	2	Enclosed	90 VAC	308 VAC	250 mA, 500 mA	4.5 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 16.63
		5	$ 16.39
		10	$ 16.16
		30	$ 15.21
		50	$ 14.73
		100	$ 14.26
		250	$ 13.78
		500	$ 13.31

Description

General part information

BPWX 4 Series

Enclosed AC DC Converters 1 Output 8V 90 ~ 308 VAC Input

Documents

Technical documentation and resources
