H16A-TG-PG21
ActiveTE Connectivity AMP Connectors
H16A-TG-PG21
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsHEAVY DUTY CONNECTORS
H16A-TG-PG21
ActiveTE Connectivity AMP Connectors
H16A-TG-PG21
Deep-Dive with AI
DocumentsHEAVY DUTY CONNECTORS
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | H16A-TG-PG21 | T1329160121 Series |
|---|---|---|
| - | - | |
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H16A | H16A |
| Size / Dimension [x] | 3.118 in | 3.118 in |
| Size / Dimension [x] | 79.2 mm | 79.2 mm |
| Size / Dimension [y] | 29.7 mm | 29.7 mm |
| Size / Dimension [y] | 1.169 in | 1.169 in |
| Size / Dimension [z] | 2.291 " | 2.291 " |
| Size / Dimension [z] | 58.2 mm | 58.2 mm |
| Style | Top Entry | Top Entry |
| Thread Size | PG21 | PG21 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.23 | |
| 10 | $ 12.87 | |||
| 25 | $ 12.53 | |||
| 50 | $ 12.05 | |||
| 100 | $ 11.17 | |||
| 250 | $ 11.10 | |||
| 500 | $ 10.69 | |||
| 1000 | $ 9.53 | |||
T1329160121 Series
H16A-TG-PG21
| Part | Style | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Housing Color | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Housing Material | Ingress Protection | Connector Type | Thread Size | Lock Location | Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors H16A-TG-PG21 | Top Entry | 125 °C | -40 °C | Powder Coated | Gray | 29.7 mm | 3.118 in | 2.291 " | 58.2 mm | 1.169 in | 79.2 mm | Aluminum Alloy, Die Cast | IP65 - Dust Tight, Water Resistant | Hood | PG21 | Locking Clip (1) on Base Bottom | H16A |
TE Connectivity AMP Connectors T1329160121-000 |
Description
General part information
T1329160121 Series

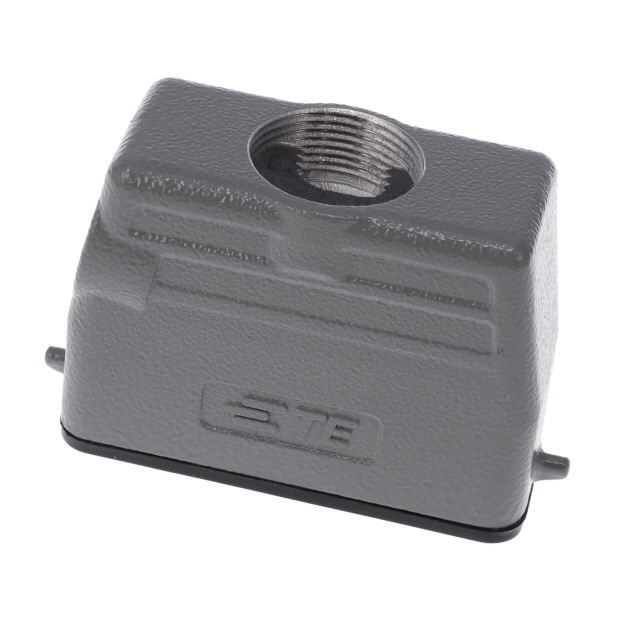

Hood Connector Top Entry PG21 H16A IP65 - Dust Tight, Water Resistant
