FJ9STST-07M

Active

UNC Group

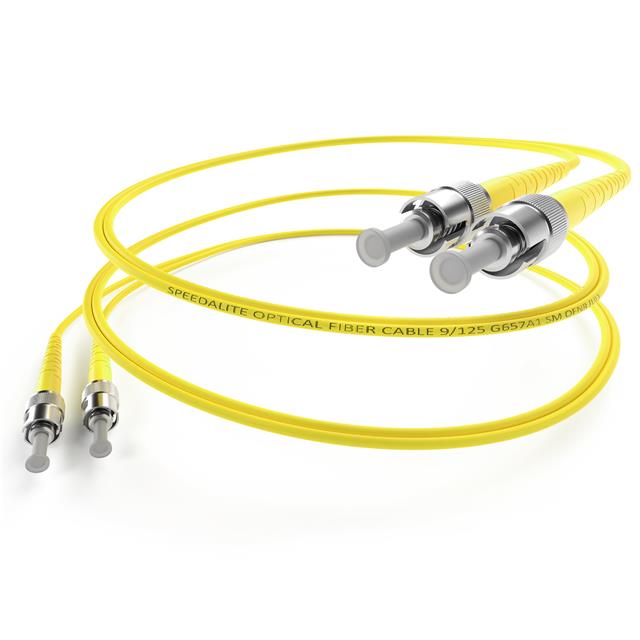

SINGLEMODE ST TO ST FIBER 7M

Deep-Dive with AI

Search across all available documentation for this part.

FJ9STST-07M

Active

UNC Group

SINGLEMODE ST TO ST FIBER 7M

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FJ9STST-07M	FJ9STST Series

1st Connector	ST	ST
2nd Connector	ST (2)	ST (2)
Bend Radius [radius]	10 mm	10 mm
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Cable Type	Twin Zip, Bend Insensitive Fiber (BIF)	Twin Zip, Bend Insensitive Fiber (BIF)
Color - Cable	Yellow	Yellow
Color - Connectors	Yellow	Yellow
Features	Dust Cap, Zipcord, Riser	Dust Cap, Zipcord, Riser
Fiber Type	9/125	9/125
Insertion Loss	0.2 dB	0.2 dB
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Length - Overall	-	30 m
Length - Overall [x]	7 m	4 - 25 m
Length - Overall [x]	23 ft	13.1 - 98.4 ft
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Ratings	OFNR	OFNR
Return Loss	55 dB	55 dB
Type	Singlemode, OS2, Duplex	Singlemode, OS2, Duplex

FJ9STST Series

SINGLEMODE ST TO ST FIBER 7M

Part	1st Connector	Insertion Loss	Color - Connectors	Bend Radius [radius]	2nd Connector	Fiber Type	Jacket (Insulation) Material	Return Loss	Type	Features	Length - Overall [x]	Length - Overall [x]	Ratings	Color - Cable	Cable Type	Cable Diameter [diameter]	Cable Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall
UNC Group FJ9STST-07M	ST	0.2 dB	Yellow	10 mm	ST (2)	9/125	Poly-Vinyl Chloride (PVC)	55 dB	Duplex, OS2, Singlemode	Dust Cap, Riser, Zipcord	7 m	23 ft	OFNR	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	-20 C	60 °C
UNC Group FJ9STST-06M	ST	0.2 dB	Yellow	10 mm	ST (2)	9/125	Poly-Vinyl Chloride (PVC)	55 dB	Duplex, OS2, Singlemode	Dust Cap, Riser, Zipcord	6 m	19.7 ft	OFNR	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	-20 C	60 °C
UNC Group FJ9STST-12M	ST	0.2 dB	Yellow	10 mm	ST (2)	9/125	Poly-Vinyl Chloride (PVC)	55 dB	Duplex, OS2, Singlemode	Dust Cap, Riser, Zipcord	12 m	39.4 ft	OFNR	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	-20 C	60 °C
UNC Group FJ9STST-04M	ST	0.2 dB	Yellow	10 mm	ST (2)	9/125	Poly-Vinyl Chloride (PVC)	55 dB	Duplex, OS2, Singlemode	Dust Cap, Riser, Zipcord	4 m	13.1 '	OFNR	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	-20 C	60 °C
UNC Group FJ9STST-15M	ST	0.2 dB	Yellow	10 mm	ST (2)	9/125	Poly-Vinyl Chloride (PVC)	55 dB	Duplex, OS2, Singlemode	Dust Cap, Riser, Zipcord	15 m	49.2 '	OFNR	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	-20 C	60 °C
UNC Group FJ9STST-20M	ST	0.2 dB	Yellow	10 mm	ST (2)	9/125	Poly-Vinyl Chloride (PVC)	55 dB	Duplex, OS2, Singlemode	Dust Cap, Riser, Zipcord	20 m	65.6 ft	OFNR	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	-20 C	60 °C
UNC Group FJ9STST-09M	ST	0.2 dB	Yellow	10 mm	ST (2)	9/125	Poly-Vinyl Chloride (PVC)	55 dB	Duplex, OS2, Singlemode	Dust Cap, Riser, Zipcord	9 m	29.5 '	OFNR	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	-20 C	60 °C
UNC Group FJ9STST-25M	ST	0.2 dB	Yellow	10 mm	ST (2)	9/125	Poly-Vinyl Chloride (PVC)	55 dB	Duplex, OS2, Singlemode	Dust Cap, Riser, Zipcord	25 m	82 ft	OFNR	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	-20 C	60 °C
UNC Group FJ9STST-30M	ST	0.2 dB	Yellow	10 mm	ST (2)	9/125	Poly-Vinyl Chloride (PVC)	55 dB	Duplex, OS2, Singlemode	Dust Cap, Riser, Zipcord		98.4 ft	OFNR	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	-20 C	60 °C	30 m
UNC Group FJ9STST-08M	ST	0.2 dB	Yellow	10 mm	ST (2)	9/125	Poly-Vinyl Chloride (PVC)	55 dB	Duplex, OS2, Singlemode	Dust Cap, Riser, Zipcord	8 m	26.2 ft	OFNR	Yellow	Twin Zip, Bend Insensitive Fiber (BIF)	2 mm	0.08 in	-20 C	60 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.52
		20	$ 11.29
		60	$ 11.06
		100	$ 10.83
		200	$ 10.60

Description

General part information

FJ9STST Series

Cable Fiber Optic ST (2) To ST (2) 9/125 23.0' (7.0m)

Documents

Technical documentation and resources

No documents available
