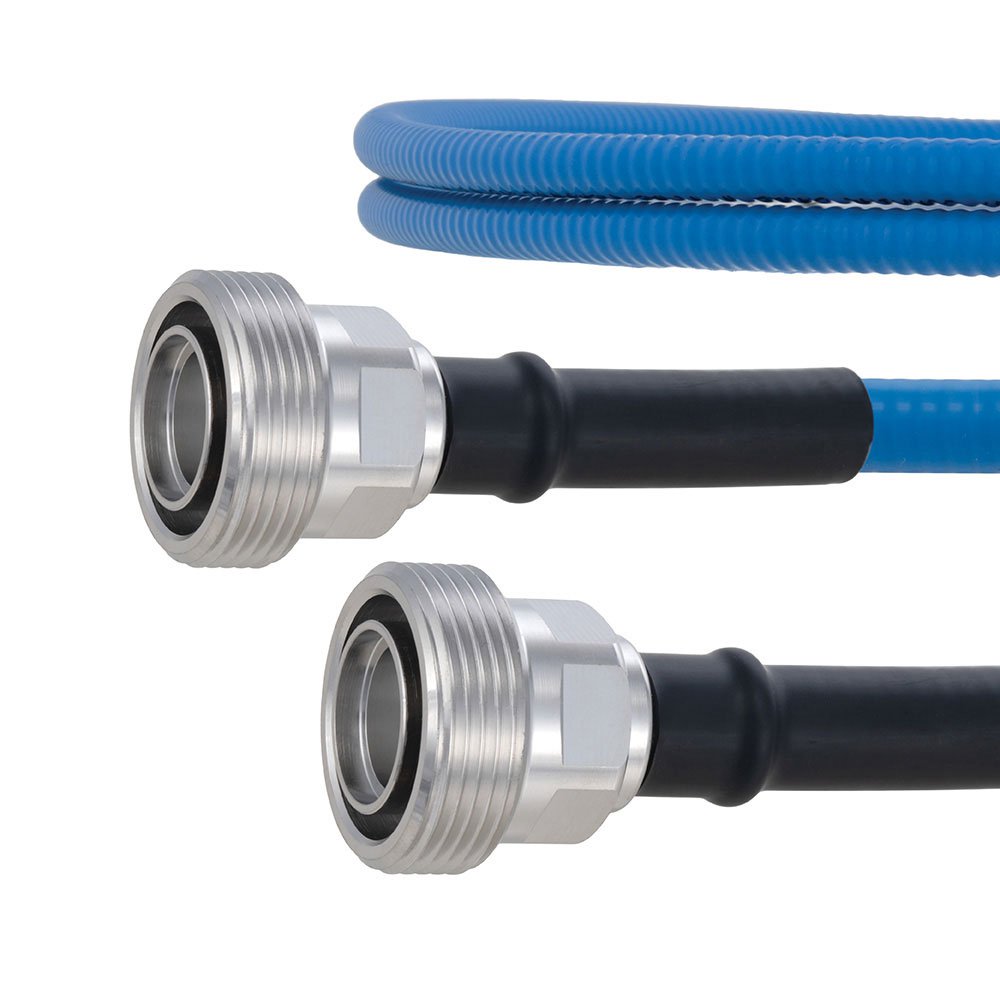

FMCA2053-36
ActiveFairview Microwave
CBL ASSY 7/16 DINJACK-7/16 DINJA
FMCA2053-36
ActiveFairview Microwave
CBL ASSY 7/16 DINJACK-7/16 DINJA
Description
General part information
FMCA2053-36
Cable Assembly Coaxial
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2053-36 |
|---|---|
| 1st Connector | 7/16 Jack |
| 1st Connector - Type | Jack |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | 7/16 Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 375LLPL |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 36 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to 7/16 DIN |
