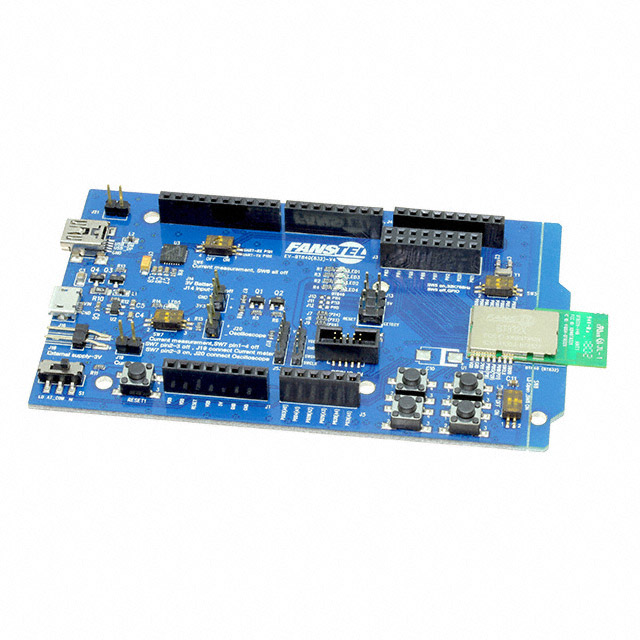

EV-BT832X

Active

Fanstel Corp.

EVALUATION BOARD FOR BT832X BLUE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsUsing BlueNor Bluetooth 5 EVB BT832X,XE Datasheet

EV-BT832X

Active

Fanstel Corp.

EVALUATION BOARD FOR BT832X BLUE

Deep-Dive with AI

DocumentsUsing BlueNor Bluetooth 5 EVB BT832X,XE Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EV-BT832X	BT832 Series

Antenna Type	-	Antenna Not Included, U.FL, Integrated, Trace
Data Rate	-	8 Mbps
For Use With/Related Products	BT832X	BT832X, BT832A, BT832XE, BT832F, BT832AF, BT832
Frequency	2.4 GHz	2.4 GHz
Memory Size	-	24 - 192 kB
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	16-SMD Module
Power - Output	-	4 - 20 dBm
Protocol	-	Bluetooth v5.0
RF Family/Standard	-	Bluetooth
Sensitivity	-	-105 dBm
Serial Interfaces	-	UART, I2C, SPI, I2S
Supplied Contents	Board(s)	Board(s)
Type	Transceiver, Bluetooth® 5.x (BLE)	Transceiver, Bluetooth® 5.x (BLE)
Utilized IC / Part	-	nRF52832, nRF52810
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.7 - 1.8 V

BT832 Series

EVALUATION BOARD FOR BT832X BLUE

Part	Type	Frequency	For Use With/Related Products	Supplied Contents	Mounting Type	Power - Output	Antenna Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate	Package / Case	Protocol	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity	Serial Interfaces	Utilized IC / Part	Memory Size
Fanstel Corp. EV-BT832X	Bluetooth® 5.x (BLE), Transceiver	2.4 GHz	BT832X	Board(s)
Fanstel Corp. BT832XE		2.4 GHz			Surface Mount	20 dBm	Antenna Not Included, U.FL	3.6 V	1.8 V	8 Mbps	16-SMD Module	Bluetooth v5.0	Bluetooth	85 °C	-40 °C	-105 dBm	I2C, SPI, UART	nRF52832
Fanstel Corp. EV-BT832A	Bluetooth® 5.x (BLE), Transceiver	2.4 GHz	BT832A	Board(s)
Fanstel Corp. EV-BT832XE	Bluetooth® 5.x (BLE), Transceiver	2.4 GHz	BT832XE	Board(s)
Fanstel Corp. BT832A		2.4 GHz			Surface Mount	4 dBm	Integrated, Trace	3.6 V	1.7 V	8 Mbps	16-SMD Module	Bluetooth v5.0	Bluetooth	85 °C	-40 °C		I2C, I2S, SPI, UART	nRF52810	24 kB, 192 kB
Fanstel Corp. BT832X		2.4 GHz			Surface Mount	20 dBm	Integrated, Trace	3.6 V	1.8 V	8 Mbps	16-SMD Module	Bluetooth v5.0	Bluetooth	85 °C	-40 °C	-105 dBm	I2C, SPI, UART	nRF52832
Fanstel Corp. EV-BT832F	Bluetooth® 5.x (BLE), Transceiver	2.4 GHz	BT832F	Board(s)
Fanstel Corp. BT832F		2.4 GHz			Surface Mount	4 dBm	Integrated, Trace	3.6 V	1.7 V	8 Mbps	16-SMD Module	Bluetooth v5.0	Bluetooth	85 °C	-40 °C		I2C, I2S, SPI, UART	nRF52832
Fanstel Corp. EV-BT832AF	Bluetooth® 5.x (BLE), Transceiver	2.4 GHz	BT832AF	Board(s)
Fanstel Corp. BT832AF		2.4 GHz			Surface Mount	4 dBm	Integrated, Trace	3.6 V	1.7 V	8 Mbps	16-SMD Module	Bluetooth v5.0	Bluetooth	85 °C	-40 °C		I2C, I2S, SPI, UART	nRF52810	24 kB, 192 kB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 51.52

Description

General part information

BT832 Series

BT832X - Transceiver; Bluetooth® 5.x (BLE) 2.4GHz Evaluation Board

Documents

Technical documentation and resources

Using BlueNor Bluetooth 5 EVB

Datasheet

BT832X,XE Datasheet

Datasheet
