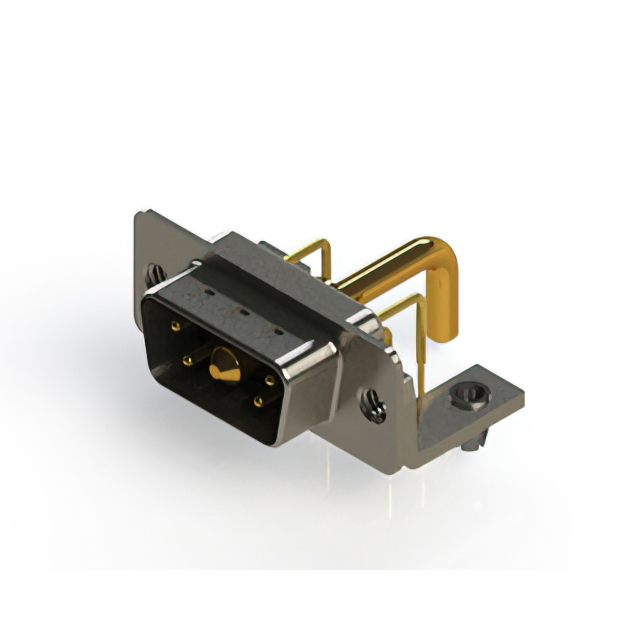

629-5W1-650-2TB

Active

EDAC Inc.

CONN D-SUB PLUG 5POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-5W1-650-2TB

Active

EDAC Inc.

CONN D-SUB PLUG 5POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-5W1-650-2TB

Backset Spacing	9.4 mm
Backset Spacing	0.37 in
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Housing/Shell (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	1 (DE, E) - 5W1
Termination	Solder
Voltage Rating	125 VDC

629-5W1 Series

...

Part	Number of Positions	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Contact Finish Thickness	Material Flammability Rating	Shell Size, Connector Layout	Color	Connector Style	Mounting Type	Contact Material	Number of Rows	Termination	Shell Material, Finish	Contact Type	Connector Type	Flange Feature	Backset Spacing	Backset Spacing	Current Rating (Amps)	Features	Contact Finish	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]
EDAC Inc. 629-5W1-250-1N5	5	Polyester Thermoplastic	-55 °C	125 °C	125 VDC	Flash	UL94 V-0	1 (DE E) - 5W1	Black	Combo D-Sub	Through Hole Right Angle	Copper Alloy	2	Solder	Nickel Plated Steel	Signal and Power	Male Pins Plug	4-40	9.4 mm	0.37 in	10A 5A	Board Lock Grounding Indents Mounting Brackets	Gold
EDAC Inc. 629-5W1-250-3TC	5	Polyester Thermoplastic	-55 °C	125 °C	125 VDC	Flash	UL94 V-0	1 (DE E) - 5W1	Black	Combo D-Sub	Through Hole Right Angle	Copper Alloy	2	Solder		Signal and Power	Male Pins Plug	Housing/Shell (M3)	9.4 mm	0.37 in		Grounding Indents Mounting Brackets	Gold	5 A 30 A
EDAC Inc. 629-5W1-640-7TA		Polyester Thermoplastic	-55 °C	125 °C	125 VDC		UL94 V-0	1 (DE E) - 5W1	Black	Combo D-Sub	Through Hole Right Angle	Copper Alloy	2	Solder		Coax Signal	Male Pins Plug	Board Side (M3)	9.4 mm	0.37 in		Grounding Indents	Gold		0.76 Ám	30 Áin	4	1
EDAC Inc. 629-5W1-640-1NA	5	Polyester Thermoplastic	-55 °C	125 °C	125 VDC		UL94 V-0	1 (DE E) - 5W1	Black	Combo D-Sub	Through Hole Right Angle	Copper Alloy	2	Solder	Nickel Plated Steel	Signal and Power	Male Pins Plug	Board Side (M3)	9.4 mm	0.37 in	10A 5A	Grounding Indents	Gold		0.76 Ám	30 Áin
EDAC Inc. 629-5W1-240-5N5		Polyester Thermoplastic	-55 °C	125 °C	125 VDC	Flash	UL94 V-0	1 (DE E) - 5W1	Black	Combo D-Sub	Through Hole Right Angle	Copper Alloy	2	Solder	Nickel Plated Steel	Coax Signal	Male Pins Plug	4-40	9.4 mm	0.37 in		Board Lock Grounding Indents Mounting Brackets	Gold				4	1
EDAC Inc. 629-5W1-250-4T2	5	Polyester Thermoplastic	-55 °C	125 °C	125 VDC	Flash	UL94 V-0	1 (DE E) - 5W1	Black	Combo D-Sub	Through Hole Right Angle	Copper Alloy	2	Solder		Signal and Power	Male Pins Plug	Housing/Shell (4-40)	9.4 mm	0.37 in			Gold	5 A 40 A
EDAC Inc. 629-5W1-650-2TB	5	Polyester Thermoplastic	-55 °C	125 °C	125 VDC		UL94 V-0	1 (DE E) - 5W1	Black	Combo D-Sub	Through Hole Right Angle	Copper Alloy	2	Solder		Signal and Power	Male Pins Plug	Housing/Shell (M3)	9.4 mm	0.37 in		Board Lock Grounding Indents Mounting Brackets	Gold	5 A 20 A	0.76 Ám	30 Áin
EDAC Inc. 629-5W1-250-3NC	5	Polyester Thermoplastic	-55 °C	125 °C	125 VDC	Flash	UL94 V-0	1 (DE E) - 5W1	Black	Combo D-Sub	Through Hole Right Angle	Copper Alloy	2	Solder	Nickel Plated Steel	Signal and Power	Male Pins Plug	Housing/Shell (M3)	9.4 mm	0.37 in		Grounding Indents Mounting Brackets	Gold	5 A 30 A
EDAC Inc. 629-5W1-250-4N6	5	Polyester Thermoplastic	-55 °C	125 °C	125 VDC	Flash	UL94 V-0	1 (DE E) - 5W1	Black	Combo D-Sub	Through Hole Right Angle	Copper Alloy	2	Solder	Nickel Plated Steel	Signal and Power	Male Pins Plug	4-40	9.4 mm	0.37 in		Board Lock Grounding Indents	Gold	5 A 40 A
EDAC Inc. 629-5W1-640-7T1		Polyester Thermoplastic	-55 °C	125 °C	125 VDC		UL94 V-0	1 (DE E) - 5W1	Black	Combo D-Sub	Through Hole Right Angle	Copper Alloy	2	Solder		Coax Signal	Male Pins Plug	Housing/Shell (Unthreaded)	9.4 mm	0.37 in		Grounding Indents Shielded	Gold		0.76 Ám	30 Áin	4	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2000	$ 7.56

Description

General part information

629-5W1 Series

5 (4 + 1 Power) Position D-Sub, Combo Plug, Male Pins Connector
