2908285

Active

Phoenix Contact

PANEL-MOUNT ENERGY METER WITH DI

Search across all available documentation for this part.

Active

Phoenix Contact

PANEL-MOUNT ENERGY METER WITH DI

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2908285	29082 Series

Approval Agency	-	CE, UKCA, UL
Coil Current	-	30 mA
Coil Resistance	-	800 Ohms
Coil Type	-	Non Latching
Coil Voltage	-	24 VDC
Contact Form	-	DPDT (2 Form C)
Contact Material	-	Silver Nickel (AgNi)
Contact Rating (Current)	-	6 A
Display Type	LCD - Black Characters, Backlight	LCD - Black Characters, Backlight
Features	-	Socket Included, Diode, Lighted Indicator
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Measuring Range [Max]	690 VAC, 5 A	5 - 690 VAC
Measuring Range [Min]	0 A, 35 VAC	0 - 35 A
Measuring Type	Current (3-Phase), Wattage, Voltage	Current (3-Phase), Wattage, Voltage
Mounting Type	-	DIN Rail
Operate Time	-	10 ms
Operating Temperature	-	50 °C
Operating Temperature	-	-20 C
Operating Temperature [Max] [custom]	55 °C	55 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Relay Type	-	General Purpose
Release Time	-	10 ms
Switching Voltage	-	250 VAC
Termination Style	Screw Terminal	Spring Terminal, Screw Terminal
Type	Energy Monitor	Energy Monitor
Voltage - Supply [Max]	400 VAC, 250 V	250 - 400 VAC
Voltage - Supply [Min]	100 VAC, 150 VDC	100 - 150 VAC

RELAY MODULE, DPDT, 6A, 250VAC, SOCKET

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Termination Style	Coil Type	Coil Resistance	Approval Agency	Contact Form	Switching Voltage	Release Time	Contact Material	Coil Current	Relay Type	Contact Rating (Current)	Coil Voltage	Mounting Type	Ingress Protection	Measuring Type	Display Type	Measuring Range [Min]	Measuring Range [Max]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Type	Voltage - Supply [Min]	Voltage - Supply [Max]
Phoenix Contact 2908215	Diode, Lighted Indicator, Socket Included	50 °C	-20 C	10 ms	Spring Terminal	Non Latching	800 Ohms	CE, UKCA, UL	DPDT (2 Form C)	250 VAC, 250 VDC	10 ms	Silver Nickel (AgNi)	30 mA	General Purpose	6 A	24 VDC	DIN Rail
Phoenix Contact 2908285					Screw Terminal													IP54 - Dust Protected, Water Resistant	Current (3-Phase), Voltage, Wattage	LCD - Black Characters, Backlight	0 A, 35 VAC	5 A, 690 VAC	55 °C	-10 °C	Energy Monitor	100 VAC, 150 VDC	250 V, 400 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 516.07

General part information

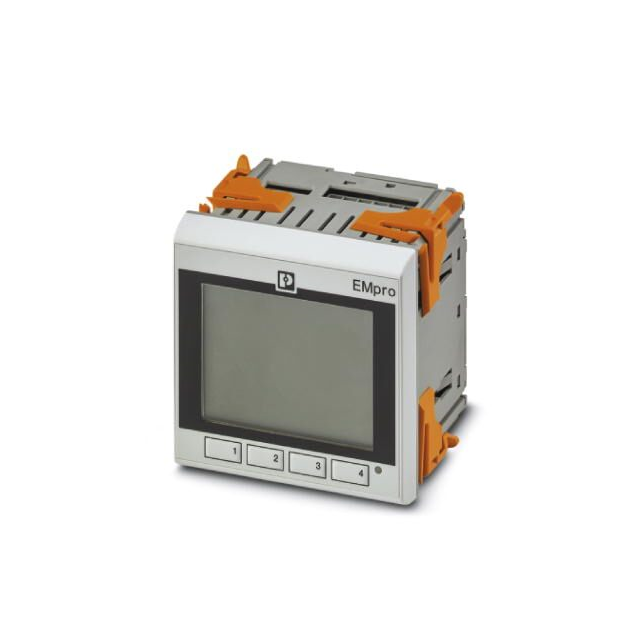

Energy Monitor LCD - Black Characters, Backlight Display Panel Mount
