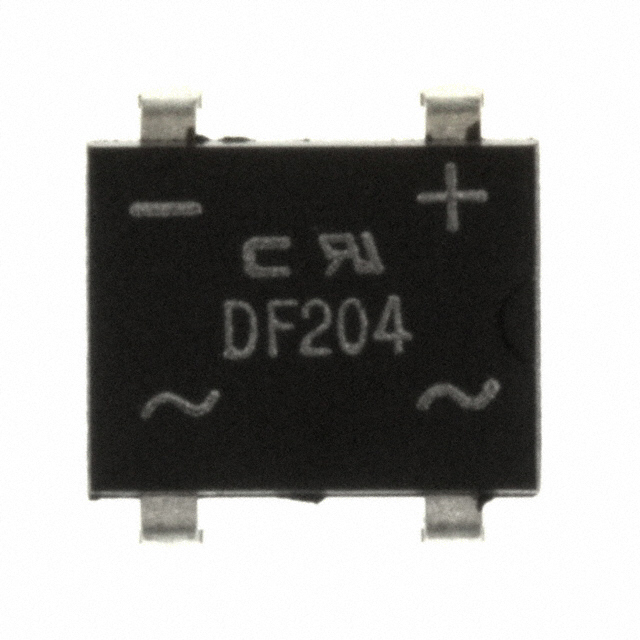

DF204-G

Active

Comchip Technology

BRIDGE RECT 1PHASE 400V 2A 4-DF

Search across all available documentation for this part.

Active

Comchip Technology

BRIDGE RECT 1PHASE 400V 2A 4-DF

Technical Specifications

Parameters and characteristics for this part

Specification	DF204-G

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-EDIP
Package / Case	0.321 in
Package / Case	8.15 mm
Supplier Device Package	4-DF
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	400 V

BRIDGE RECT 1PHASE 400V 2A 4-DF

Part	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Technology	Current - Average Rectified (Io)	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Package / Case	Diode Type	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Supplier Device Package
Comchip Technology DF204-G	1.1 V	10 µA	Standard	2 A	-55 °C	150 °C	4-EDIP	0.321 in	8.15 mm	Single Phase	400 V	Through Hole	4-DF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 400 V Through Hole 4-DF
