629W17W2640-3NC

Active

EDAC Inc.

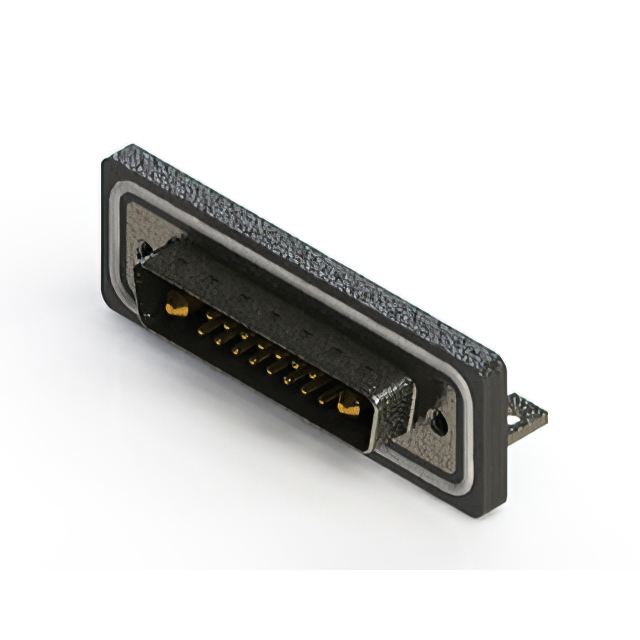

CONN D-SUB PLUG 17POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629W17W2640-3NC

Active

EDAC Inc.

CONN D-SUB PLUG 17POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629W17W2640-3NC

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	30 A, 5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents, Mounting Brackets, Shielded
Flange Feature	Housing/Shell (M3)
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions [custom]	15
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	17W2, 3 (DB, B)
Termination	Solder
Voltage Rating	125 VDC

629W17W Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Dielectric Material	Ingress Protection	Connector Type	Flange Feature	Current Rating (Amps)	Contact Material	Shell Material, Finish	Voltage Rating	Material Flammability Rating	Color	Connector Style	Features	Number of Rows	Termination	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Shell Size, Connector Layout	Contact Finish	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 629W17W2640-1NC	-55 °C	125 °C	15	2	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Male Pins Plug	Housing/Shell (M3)	10A 5A	Copper Alloy	Nickel Plated Steel	125 VDC	UL94 V-0	Black	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	2	Solder	Signal and Power	0.76 Ám	30 Áin	17W2 3 (DB B)	Gold
EDAC Inc. 629W17W2640-3NC	-55 °C	125 °C	15	2	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Male Pins Plug	Housing/Shell (M3)		Copper Alloy	Nickel Plated Steel	125 VDC	UL94 V-0	Black	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	2	Solder	Signal and Power	0.76 Ám	30 Áin	17W2 3 (DB B)	Gold	5 A 30 A
EDAC Inc. 629W17W2640-1N4	-55 °C	125 °C	15	2	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Male Pins Plug	Housing/Shell (4-40)	10A 5A	Copper Alloy	Nickel Plated Steel	125 VDC	UL94 V-0	Black	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	2	Solder	Signal and Power	0.76 Ám	30 Áin	17W2 3 (DB B)	Gold
EDAC Inc. 629W17W2640-4N2	-55 °C	125 °C	15	2	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Male Pins Plug	Housing/Shell (4-40)		Copper Alloy	Nickel Plated Steel	125 VDC	UL94 V-0	Black	Combo D-Sub	Grounding Indents Shielded	2	Solder	Signal and Power	0.76 Ám	30 Áin	17W2 3 (DB B)	Gold	5 A 40 A
EDAC Inc. 629W17W2140-3N4	-55 °C	125 °C	15	2	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Male Pins Plug	Housing/Shell (4-40)		Copper Alloy	Nickel Plated Steel	125 VDC	UL94 V-0	Black	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	2	Solder	Signal and Power	0.127 µm	5 µin	17W2 3 (DB B)	Gold	5 A 30 A
EDAC Inc. 629W17W2140-1NC	-55 °C	125 °C	15	2	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Male Pins Plug	Housing/Shell (M3)	10A 5A	Copper Alloy	Nickel Plated Steel	125 VDC	UL94 V-0	Black	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	2	Solder	Signal and Power	0.127 µm	5 µin	17W2 3 (DB B)	Gold
EDAC Inc. 629W17W2340-4NC	-55 °C	125 °C	15	2	Through Hole Right Angle	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Male Pins Plug	Housing/Shell (M3)		Copper Alloy	Nickel Plated Steel	125 VDC	UL94 V-0	Black	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	2	Solder	Signal and Power	0.38 µm	15 µin	17W2 3 (DB B)	Gold	5 A 40 A
EDAC Inc. 629W17W2340-4N4	-55 °C	125 °C	15	2	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Male Pins Plug	Housing/Shell (4-40)		Copper Alloy	Nickel Plated Steel	125 VDC	UL94 V-0	Black	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	2	Solder	Signal and Power	0.38 µm	15 µin	17W2 3 (DB B)	Gold	5 A 40 A
EDAC Inc. 629W17W2240-4N2	-55 °C	125 °C	15	2	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Male Pins Plug	Housing/Shell (4-40)		Copper Alloy	Nickel Plated Steel	125 VDC	UL94 V-0	Black	Combo D-Sub	Grounding Indents Shielded	2	Solder	Signal and Power			17W2 3 (DB B)	Gold	5 A 40 A	Flash
EDAC Inc. 629W17W2240-4N4	-55 °C	125 °C	15	2	Panel Mount Right Angle Through Hole	Polybutylene Terephthalate (PBT) Glass Filled	IP67 - Dust Tight Waterproof	Male Pins Plug	Housing/Shell (4-40)		Copper Alloy	Nickel Plated Steel	125 VDC	UL94 V-0	Black	Combo D-Sub	Grounding Indents Mounting Brackets Shielded	2	Solder	Signal and Power			17W2 3 (DB B)	Gold	5 A 40 A	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 29.00

Description

General part information

629W17W Series

17 (15 + 2 Power) Position D-Sub, Combo Plug, Male Pins Connector
