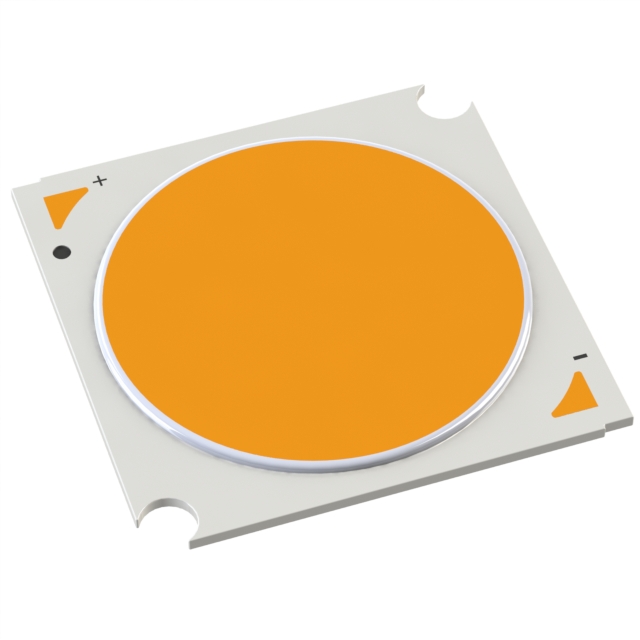

CHM-27-30-95-36-AB00-F2-3
Luminus Devices Inc.
LED COB CHM27 WARM WHT SQ 3000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CHM-27-30-95-36-AB00-F2-3
Luminus Devices Inc.
LED COB CHM27 WARM WHT SQ 3000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CHM-27-30-95-36-AB00-F2-3 | CHM-27 Series |
|---|---|---|
| CCT (K) | 3000 K | 2700 - 6500 K |
| CCT (K) | - | 5-Step MacAdam Ellipse |
| Color | White, Warm | White, Warm, Neutral, Cool |
| Configuration | Square | Square |
| CRI (Color Rendering Index) | 95 | 70 - 95 |
| Current - Test | 2.7 A | 2.7 A |
| Height [z] | 1.37 mm | 1.37 mm |
| Lens Type | Flat | Flat |
| Light Emitting Surface (LES) [diameter] | 26.5 mm | 26.5 mm |
| Lumens/Watt @ Current - Test | 86 lm/W | 76 - 125 lm/W |
| Luminous Flux @ Current/Temperature | 8085 lm | 7140 - 11810 lm |
| Size / Dimension [x] | 31.5 mm | 31.5 mm |
| Size / Dimension [y] | 31.5 mm | 31.5 mm |
| Temperature - Test | 85 °C | 85 °C |
| Type | Chip On Board (COB) | Chip On Board (COB) |
| Viewing Angle | 120 ° | 120 ° |
| Voltage - Forward (Vf) (Typ) | 35 V | 35 V |
CHM-27 Series
LED COB CHM27 WARM WHT SQU 2700K
| Part | Configuration | Viewing Angle | Light Emitting Surface (LES) [diameter] | Height [z] | Voltage - Forward (Vf) (Typ) | Temperature - Test | Type | Lumens/Watt @ Current - Test | Color | Current - Test | Luminous Flux @ Current/Temperature | CCT (K) | Size / Dimension [y] | Size / Dimension [x] | Lens Type | CRI (Color Rendering Index) | CCT (K) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Luminus Devices Inc. CHM-27-27-90-36-AA00-F2-3 | Square | 120 ° | 26.5 mm | 1.37 mm | 35 V | 85 °C | Chip On Board (COB) | 80 lm/W | Warm, White | 2.7 A | 7585 lm | 2700 K | 31.5 mm | 31.5 mm | Flat | 90 | |
Luminus Devices Inc. CHM-27-40-90-36-AA00-F2-3 | Square | 120 ° | 26.5 mm | 1.37 mm | 35 V | 85 °C | Chip On Board (COB) | 100 lm/W | Neutral, White | 2.7 A | 9470 lm | 4000 K | 31.5 mm | 31.5 mm | Flat | 90 | |
Luminus Devices Inc. CHM-27-50-80-36-AA00-F2-5 | Square | 120 ° | 26.5 mm | 1.37 mm | 35 V | 85 °C | Chip On Board (COB) | 119 lm/W | Cool, White | 2.7 A | 11250 lm | 5000 K | 31.5 mm | 31.5 mm | Flat | 80 | 5-Step MacAdam Ellipse |
Luminus Devices Inc. CHM-27-50-80-36-AB00-F2-5 | Square | 120 ° | 26.5 mm | 1.37 mm | 35 V | 85 °C | Chip On Board (COB) | 121 lm/W | Cool, White | 2.7 A | 11430 lm | 5000 K | 31.5 mm | 31.5 mm | Flat | 80 | 5-Step MacAdam Ellipse |
Luminus Devices Inc. CHM-27-40-90-36-AB00-F2-3 | Square | 120 ° | 26.5 mm | 1.37 mm | 35 V | 85 °C | Chip On Board (COB) | 100 lm/W | Neutral, White | 2.7 A | 9470 lm | 4000 K | 31.5 mm | 31.5 mm | Flat | 90 | |
Luminus Devices Inc. CHM-27-27-90-36-AB00-F2-3 | Square | 120 ° | 26.5 mm | 1.37 mm | 35 V | 85 °C | Chip On Board (COB) | 80 lm/W | Warm, White | 2.7 A | 7585 lm | 2700 K | 31.5 mm | 31.5 mm | Flat | 90 | |
Luminus Devices Inc. CHM-27-65-70-36-AA00-F2-5 | Square | 120 ° | 26.5 mm | 1.37 mm | 35 V | 85 °C | Chip On Board (COB) | Cool, White | 2.7 A | 11760 lm | 6500 K | 31.5 mm | 31.5 mm | Flat | 70 | ||
Luminus Devices Inc. CHM-27-50-70-36-AB00-F2-3 | Square | 120 ° | 26.5 mm | 1.37 mm | 35 V | 85 °C | Chip On Board (COB) | 125 lm/W | Cool, White | 2.7 A | 11810 lm | 31.5 mm | 31.5 mm | Flat | 70 | ||
Luminus Devices Inc. CHM-27-65-70-36-AB00-F2-5 | Square | 120 ° | 26.5 mm | 1.37 mm | 35 V | 85 °C | Chip On Board (COB) | Cool, White | 2.7 A | 11760 lm | 6500 K | 31.5 mm | 31.5 mm | Flat | 70 | ||
Luminus Devices Inc. CHM-27-65-70-36-AB00-F2-3 | Square | 120 ° | 26.5 mm | 1.37 mm | 35 V | 85 °C | Chip On Board (COB) | Cool, White | 2.7 A | 11760 lm | 6500 K | 31.5 mm | 31.5 mm | Flat | 70 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 400 | $ 20.18 | |
Description
General part information
CHM-27 Series
LED Lighting COBs Engines Modules Chip On Board (COB) CHM-27 White, Warm Square
