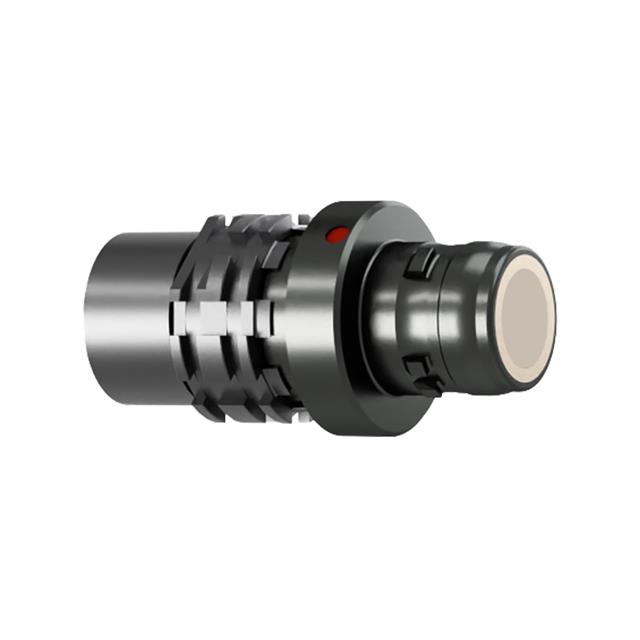

A11YCR-P16WDD0-R000
ActiveODU
ODU AMC PLUG, STY 1, SZ 1, 16P,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A11YCR-P16WDD0-R000
ActiveODU
ODU AMC PLUG, STY 1, SZ 1, 16P,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A11YCR-P16WDD0-R000 | A11YCR-P Series |
|---|---|---|
| Applications | Medical, Industrial, Military | Medical, Industrial, Military |
| Backshell Material, Plating | Ruthenium over Electroless Nickel, Aluminum | Ruthenium over Electroless Nickel, Aluminum |
| Cable Opening [custom] | 0.256 in | 0.256 in |
| Cable Opening [custom] | 6.5 mm | 6.5 mm |
| Color | Silver | Silver |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 1.27 µm | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin | 50 µin |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 2 A | 2 - 5 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP68, IP69K | IP68, IP69K |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 16 | 16 |
| Number of Positions | - | 14 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -51 °C | -51 °C |
| Orientation | C | C |
| Primary Material | Metal | Metal |
| Shell Finish | Ruthenium over Electroless Nickel | Ruthenium over Electroless Nickel |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 1 | 1 |
| Shielding | Shielded | Shielded |
| Voltage Rating | 200 V | 200 V |
A11YCR-P Series
ODU AMC PLUG, STY 1, SZ 1, 16P,
| Part | Mounting Type | Shielding | Connector Type | Ingress Protection | Number of Positions | Contact Material | Orientation | Primary Material | Cable Opening [custom] | Cable Opening [custom] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Contact Finish - Mating | Shell Size - Insert | Features | Material Flammability Rating | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Finish | Backshell Material, Plating | Shell Material | Current Rating (Amps) | Voltage Rating | Color | Applications | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Free Hanging (In-Line) | Shielded | Male Pins, Plug | IP68, IP69K | 16 | Copper Alloy | C | Metal | 0.256 in | 6.5 mm | 1.27 µm | 50 µin | Polyetheretherketone (PEEK) | Gold | 1 | Backshell | UL94 V-0 | Push-Pull | -51 °C | 125 °C | Ruthenium over Electroless Nickel | Aluminum, Ruthenium over Electroless Nickel | Aluminum | 2 A | 200 V | Silver | Industrial, Medical, Military | ||
Free Hanging (In-Line) | Shielded | Male Pins, Plug | IP68, IP69K | Copper Alloy | C | Metal | 0.256 in | 6.5 mm | 1.27 µm | 50 µin | Polyetheretherketone (PEEK) | Gold | 1 | Backshell | UL94 V-0 | Push-Pull | -51 °C | 125 °C | Ruthenium over Electroless Nickel | Aluminum, Ruthenium over Electroless Nickel | Aluminum | 5 A | 200 V | Silver | Industrial, Medical, Military | 14 | ||
Free Hanging (In-Line) | Shielded | Male Pins, Plug | IP68, IP69K | 16 | Copper Alloy | C | Metal | 0.256 in | 6.5 mm | 1.27 µm | 50 µin | Polyetheretherketone (PEEK) | Gold | 1 | Backshell | UL94 V-0 | Push-Pull | -51 °C | 125 °C | Ruthenium over Electroless Nickel | Aluminum, Ruthenium over Electroless Nickel | Aluminum | 5 A | 200 V | Silver | Industrial, Medical, Military |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 126.20 | |
Description
General part information
A11YCR-P Series
16 Position Circular Connector Plug, Male Pins Solder Cup
