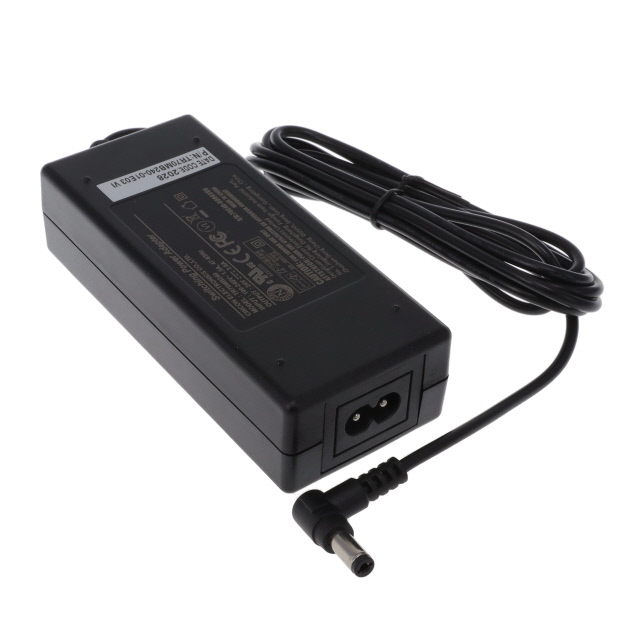

TR70MB240-01E03 VI
ActiveCincon Electronics Co. LTD
AC/DC DESKTOP ADAPTER 24V 72W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TR70MB240-01E03 VI
ActiveCincon Electronics Co. LTD
AC/DC DESKTOP ADAPTER 24V 72W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TR70MB240-01E03 VI |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, FCC, NEMKO, CE |
| Cord Length | 70.9 in |
| Cord Length | 1.8 m |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption [Max] | 150 mW |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output Connector | Barrel Plug R/A |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 12 mm |
| Polarization | Positive Center |
| Power (Watts) | 72 W |
| Region Utilized | International |
| Size / Dimension [x] | 4.72 in |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 2.05 in |
| Size / Dimension [y] | 52 mm |
| Size / Dimension [z] | 31 mm |
| Size / Dimension [z] | 1.22 in |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 25.09 | |
| 5 | $ 24.70 | |||
| 10 | $ 24.32 | |||
| 25 | $ 23.16 | |||
| 50 | $ 22.39 | |||
| 100 | $ 20.84 | |||
| 250 | $ 20.53 | |||
| 500 | $ 19.95 | |||
Description
General part information
TR70MB240-01E03 VI
24V 72 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
