1-1337406-0

Active

TE Connectivity AMP Connectors

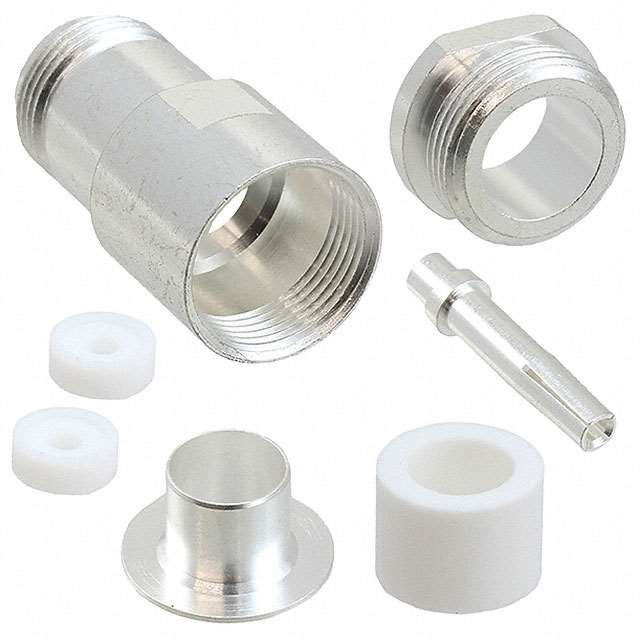

CONN N JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN N JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337406-0

Body Finish	Silver
Body Material	Brass
Cable Group	RG-8A, 213
Center Contact Material	Phosphor Bronze
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 pcs, 2 pcs, 1 pcs, 1 pcs, 1, 1 pcs
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1000 VDC

CONN N JACK STR 50 OHM SOLDER

Part	Mounting Type	Impedance	Body Material	Frequency - Max [Max]	Center Contact Plating	Contact Termination	Includes	Housing Color	Dielectric Material	Cable Group	Connector Style	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Mating Cycles	Connector Type	Number of Ports	Body Finish	Center Contact Material
TE Connectivity AMP Connectors 1-1337406-0	Free Hanging (In-Line)	50 Ohms	Brass	11 GHz	Silver	Solder	1 pcs, 1 pcs, 1 pcs, 1, 1 pcs, 2 pcs	Silver	Polytetrafluoroethylene (PTFE)	213, RG-8A	N Type	Clamp	-65 ░C	165 °C	1000 VDC	500	Female Socket, Jack	1	Silver	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 6.42

General part information

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
