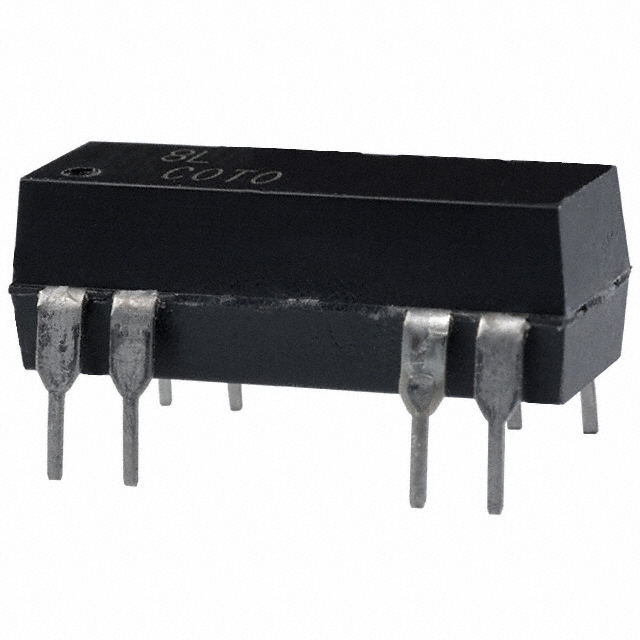

8L41-12-111

Active

Coto Technology

RELAY REED SPDT 250MA 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8L41-12-111

Active

Coto Technology

RELAY REED SPDT 250MA 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 8.95
		10	$ 7.95
		25	$ 7.55
		50	$ 7.16
		100	$ 7.00

Description

General part information

8L41 Series

RELAY REED SPDT 250MA 12V

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8L41-12-111	8L41 Series

Coil Current	24 mA	12 - 24 mA
Coil Resistance	500 Ohms	2 - 500 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	5 - 24 VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)
Contact Rating (Current)	250 mA	250 mA
Features	Diode, Electrostatic Shield	Diode, Electrostatic Shield
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	9.6 VDC	3.8 - 19.2 VDC
Must Release Voltage	1 VDC	0.5 - 2 VDC
Operate Time	1 ms	1 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	1 ms	1 ms
Switching Voltage	100 VAC, 100 VDC	100 VAC
Termination Style	PC Pin	PC Pin

8L41 Series

RELAY REED SPDT 250MA 5V

Part	Must Release Voltage	Switching Voltage	Coil Resistance	Release Time	Coil Type	Coil Voltage	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Must Operate Voltage	Operate Time	Contact Form	Termination Style	Contact Rating (Current)	Features	Coil Current
Coto Technology 8L41-05-111	0.5 VDC	100 VAC, 100 VDC	200 Ohms	1 ms	Non Latching	5 VDC	Through Hole	85 °C	-20 C	3.8 VDC	1 ms	SPDT (1 Form C)	PC Pin	250 mA	Diode, Electrostatic Shield
Coto Technology 8L41-24-101	2 VDC	100 VAC, 100 VDC	2 kOhms	1 ms	Non Latching	24 VDC	Through Hole	85 °C	-20 C	19.2 VDC	1 ms	SPDT (1 Form C)	PC Pin	250 mA	Electrostatic Shield	12 mA
Coto Technology 8L41-24-001	2 VDC	100 VAC, 100 VDC	2 kOhms	1 ms	Non Latching	24 VDC	Through Hole	85 °C	-20 C	19.2 VDC	1 ms	SPDT (1 Form C)	PC Pin	250 mA		12 mA
Coto Technology 8L41-05-101	0.5 VDC	100 VAC, 100 VDC	200 Ohms	1 ms	Non Latching	5 VDC	Through Hole	85 °C	-20 C	3.8 VDC	1 ms	SPDT (1 Form C)	PC Pin	250 mA	Electrostatic Shield
Coto Technology 8L41-12-011	1 VDC	100 VAC, 100 VDC	500 Ohms	1 ms	Non Latching	12 VDC	Through Hole	85 °C	-20 C	9.6 VDC	1 ms	SPDT (1 Form C)	PC Pin	250 mA	Diode	24 mA
Coto Technology 8L41-24-011	2 VDC	100 VAC, 100 VDC	2 kOhms	1 ms	Non Latching	24 VDC	Through Hole	85 °C	-20 C	19.2 VDC	1 ms	SPDT (1 Form C)	PC Pin	250 mA	Diode	12 mA
Coto Technology 8L41-12-111	1 VDC	100 VAC, 100 VDC	500 Ohms	1 ms	Non Latching	12 VDC	Through Hole	85 °C	-20 C	9.6 VDC	1 ms	SPDT (1 Form C)	PC Pin	250 mA	Diode, Electrostatic Shield	24 mA
Coto Technology 8L41-05-011	0.5 VDC	100 VAC, 100 VDC	200 Ohms	1 ms	Non Latching	5 VDC	Through Hole	85 °C	-20 C	3.8 VDC	1 ms	SPDT (1 Form C)	PC Pin	250 mA	Diode
Coto Technology 8L41-05-001	0.5 VDC	100 VAC, 100 VDC	200 Ohms	1 ms	Non Latching	5 VDC	Through Hole	85 °C	-20 C	3.8 VDC	1 ms	SPDT (1 Form C)	PC Pin	250 mA
Coto Technology 8L41-24-111	2 VDC	100 VAC, 100 VDC	2 kOhms	1 ms	Non Latching	24 VDC	Through Hole	85 °C	-20 C	19.2 VDC	1 ms	SPDT (1 Form C)	PC Pin	250 mA	Diode, Electrostatic Shield	12 mA
