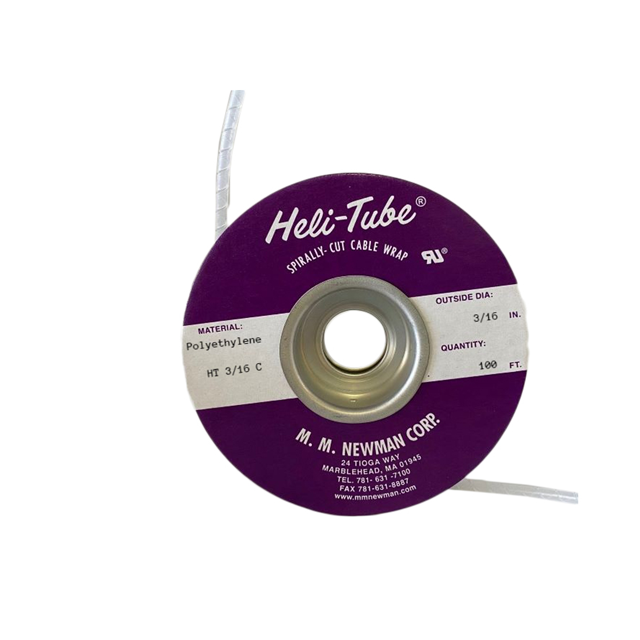

HT 3/16 C

Active

MM Newman Corporation

SPIRAL WRAP 0.127" X 100' NAT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HT 3/16 C

Active

MM Newman Corporation

SPIRAL WRAP 0.127" X 100' NAT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 40.13
		10	$ 31.33

Description

General part information

HT 3/16 Series

Spiral Wrap 0.187" (4.75mm) X 100' (30.48m) Natural

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HT 3/16 C	HT 3/16 Series

Abrasion Protection	Abrasion Resistant	Abrasion Resistant
Color	Natural	Black, Natural, White
Diameter - Inside, Expanded [diameter]	1.5 in	1.5 in
Diameter - Inside, Expanded [diameter]	38.1 mm	38.1 mm
Diameter - Inside, Non-Expanded [diameter]	0.127 in	0.107 - 0.147 in
Diameter - Inside, Non-Expanded [diameter]	3.23 mm	2.72 - 3.73 mm
Diameter - Outside, Non-Expanded [diameter]	4.75 mm	4.75 - 4.78 mm
Diameter - Outside, Non-Expanded [diameter]	0.187 in	0.187 - 0.188 in
Environment Protection	-	UV Resistant
Features	Solvent Resistant, Chemical Resistant	Solvent Resistant, Chemical Resistant, Self Extinguishing
Heat Protection	-	Fire Resistant
Length	100 ft	100 ft
Length	30.48 m	30.48 m
Material	Polyethylene (PE)	Polyethylene (PE), Nylon, Polytetrafluoroethylene (PTFE)
Material Flammability Rating	-	UL94 V-0, UL VW-1, UL94 V-2, UL1441
Operating Temperature [Max]	88 °C	80 - 260 °C
Operating Temperature [Min]	-60 °C	-268 - -20 °C
Type	Spiral Wrap	Spiral Wrap
Type Attributes	Harness	Harness
Wall Thickness	-	0.04 in
Wall Thickness	-	1.02 mm
Wall Thickness [custom]	0.03 in	0.02 - 0.03 in
Wall Thickness [custom]	0.76 mm	0.51 - 0.76 mm

HT 3/16 Series

SPIRAL WRAP 0.127" X 100' BLACK

Part	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Wall Thickness [custom]	Wall Thickness [custom]	Length	Length	Material	Abrasion Protection	Features	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Type	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Type Attributes	Heat Protection	Environment Protection	Material Flammability Rating	Wall Thickness	Wall Thickness
MM Newman Corporation HT 3/16 UR	0.127 in	3.23 mm	Black	-60 °C	88 °C	0.03 in	0.76 mm	100 ft	30.48 m	Polyethylene (PE)	Abrasion Resistant	Chemical Resistant, Solvent Resistant	1.5 in	38.1 mm	Spiral Wrap	4.78 mm	0.188 in	Harness
MM Newman Corporation HT 3/16 N	0.147 in	3.73 mm	Natural	-40 °C	121 °C	0.02 in	0.51 mm	100 ft	30.48 m	Nylon	Abrasion Resistant	Chemical Resistant, Self Extinguishing, Solvent Resistant	1.5 in	38.1 mm	Spiral Wrap	4.78 mm	0.188 in	Harness
MM Newman Corporation HT 3/16 T	0.127 in	3.23 mm	Natural	-268 °C	260 ░C	0.03 in	0.76 mm	100 ft	30.48 m	Polytetrafluoroethylene (PTFE)	Abrasion Resistant	Chemical Resistant, Solvent Resistant	1.5 in	38.1 mm	Spiral Wrap	4.78 mm	0.188 in	Harness	Fire Resistant	UV Resistant	UL VW-1, UL94 V-0
MM Newman Corporation HT 3/16 N-B	0.147 in	3.73 mm	Black	-40 °C	121 °C	0.02 in	0.51 mm	100 ft	30.48 m	Nylon	Abrasion Resistant	Chemical Resistant, Self Extinguishing, Solvent Resistant	1.5 in	38.1 mm	Spiral Wrap	4.78 mm	0.188 in	Harness		UV Resistant
MM Newman Corporation HT 3/16 R	0.107 in	2.72 mm	White	-20 C	80 C			100 ft	30.48 m	Polyethylene (PE)	Abrasion Resistant	Chemical Resistant, Solvent Resistant	1.5 in	38.1 mm	Spiral Wrap	4.78 mm	0.188 in	Harness	Fire Resistant		UL94 V-2, UL1441	0.04 in	1.02 mm
MM Newman Corporation HT 3/16 C	0.127 in	3.23 mm	Natural	-60 °C	88 °C	0.03 in	0.76 mm	100 ft	30.48 m	Polyethylene (PE)	Abrasion Resistant	Chemical Resistant, Solvent Resistant	1.5 in	38.1 mm	Spiral Wrap	4.75 mm	0.187 in	Harness
