A22034-001

Active

Omnetics

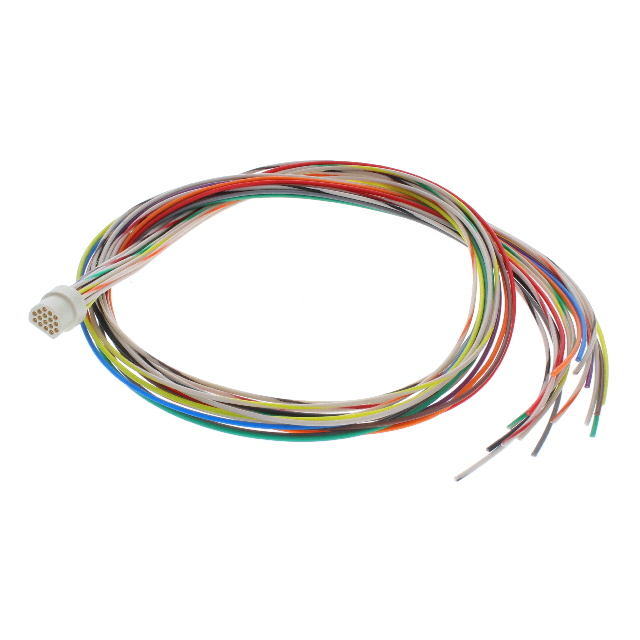

CIRC CBL 16POS PLUG TO WIRE 1.5'

Search across all available documentation for this part.

Active

Omnetics

CIRC CBL 16POS PLUG TO WIRE 1.5'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A22034-001	MCP-16 Series

1st Connector Gender	Male Pins	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Connector Number of Positions	16	16
1st Connector Number of Positions Loaded	All	All
1st Connector Orientation [custom]	Keyed	Keyed
1st Connector Type	Plug	Plug
2nd Connector Type	Wire Leads	Wire Leads
Assembly Configuration	Standard	Standard
Cable Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Cable Type	Individual	Individual
Color	Multiple	Multiple, Natural
Connector Type	-	Plug, Male Pins
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	1.27 µm
Contact Finish Thickness - Mating	-	50 µin
Contact Material	-	Beryllium Copper
Current Rating (Amps)	-	3 A
Fastening Type	-	Push-Pull
Insert Material	-	Liquid Crystal Polymer (LCP)
Length [x]	457.2 mm	457.2 mm
Length [x]	1.5 ft	1.5 ft
Mounting Type	-	Free Hanging (In-Line)
Number of Positions	-	16
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Orientation	-	Keyed
Primary Material	-	Plastic
Shell Material	-	Liquid Crystal Polymer (LCP)
Shielding	Unshielded	Unshielded

CIRC CBL 16POS PLUG TO WIRE 1.5'

Part	Color	1st Connector Number of Positions	Length [x]	Length [x]	Assembly Configuration	Cable Type	1st Connector Type	Cable Material	1st Connector Number of Positions Loaded	Shielding	2nd Connector Type	1st Connector Mounting Type	1st Connector Gender	1st Connector Orientation [custom]	Shell Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Fastening Type	Mounting Type	Primary Material	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Orientation	Current Rating (Amps)	Contact Finish - Mating
Omnetics A22034-001	Multiple	16	457.2 mm	1.5 ft	Standard	Individual	Plug	Polytetrafluoroethylene (PTFE)	All	Unshielded	Wire Leads	Free Hanging (In-Line)	Male Pins	Keyed
Omnetics A22032-001	Natural									Unshielded					Liquid Crystal Polymer (LCP)	1.27 µm	50 µin	Beryllium Copper	Push-Pull	Free Hanging (In-Line)	Plastic	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Male Pins, Plug	16	Keyed	3 A	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 1.50' (457.20mm)
