628-43W2622-5T2

Active

EDAC Inc.

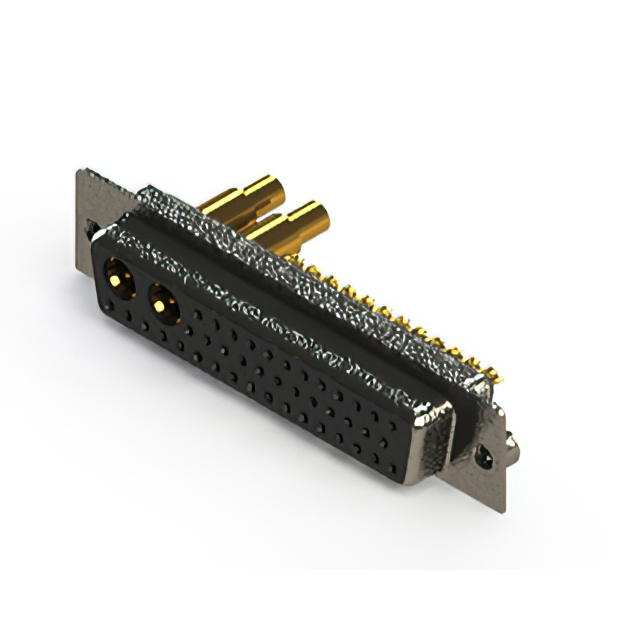

CONN D-SUB RCPT 43POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-43W2622-5T2

Active

EDAC Inc.

CONN D-SUB RCPT 43POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-43W2622-5T2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	2
Number of Positions [custom]	41
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5 (DD, D) - 43W2
Voltage Rating	125 VDC

628-43W Series

...

Part	Connector Style	Contact Finish	Material Flammability Rating	Color	Mounting Type	Voltage Rating	Contact Material	Flange Feature	Number of Rows	Number of Positions [custom]	Number of Positions [custom]	Termination	Connector Type	Shell Size, Connector Layout	Dielectric Material	Contact Type	Features	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Current Rating (Amps)	Current Rating (Amps)	Contact Finish Thickness	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 628-43W2624-7N3	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	4-40 Board Side	3	2	41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Coax Signal	Shielded	0.76 Ám	30 Áin	Nickel Plated Steel	-55 °C	125 °C
EDAC Inc. 628-43W2624-1N1	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	Housing/Shell (Unthreaded)	3		41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Signal and Power	Shielded	0.76 Ám	30 Áin	Nickel Plated Steel	-55 °C	125 °C	2	10A 5A
EDAC Inc. 628-43W2624-2N3	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	4-40 Board Side	3		41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Signal and Power	Shielded	0.76 Ám	30 Áin	Nickel Plated Steel	-55 °C	125 °C	2		5 A 20 A
EDAC Inc. 628-43W2624-1T5	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	4-40 Board Side	3		41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Signal and Power	Board Lock Shielded	0.76 Ám	30 Áin		-55 °C	125 °C	2	10A 5A
EDAC Inc. 628-43W2622-5T2	Combo D-Sub	Gold	UL94 V-0	Black	Free Hanging (In-Line)	125 VDC	Copper Alloy	4-40 Board Side	3	2	41		Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Coax Signal	Shielded	0.76 Ám	30 Áin		-55 °C	125 °C
EDAC Inc. 628-43W2222-3T1	Combo D-Sub	Gold	UL94 V-0	Black	Free Hanging (In-Line)	125 VDC	Copper Alloy	Housing/Shell (Unthreaded)	3		41		Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Signal and Power	Shielded				-55 °C	125 °C	2		5 A 30 A	Flash
EDAC Inc. 628-43W2224-2N6	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	4-40	3		41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Signal and Power	Board Lock Shielded			Nickel Plated Steel	-55 °C	125 °C	2		5 A 20 A	Flash
EDAC Inc. 628-43W2624-4T4	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	4-40	3		41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Signal and Power	Shielded	0.76 Ám	30 Áin		-55 °C	125 °C	2		5 A 40 A
EDAC Inc. 628-43W2624-5N4	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy	4-40	3	2	41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Coax Signal	Shielded	0.76 Ám	30 Áin	Nickel Plated Steel	-55 °C	125 °C
EDAC Inc. 628-43W2624-7NC	Combo D-Sub	Gold	UL94 V-0	Black	Through Hole	125 VDC	Copper Alloy		3	2	41	Solder	Receptacle Female Sockets	5 (DD D) - 43W2	Polyester Thermoplastic	Coax Signal	Shielded	0.76 Ám	30 Áin	Nickel Plated Steel	-55 °C	125 °C					M3	M3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	200	$ 39.67

Description

General part information

628-43W Series

43 (41 + 2 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
