SEIFCX-7

Active

Curtis Industries

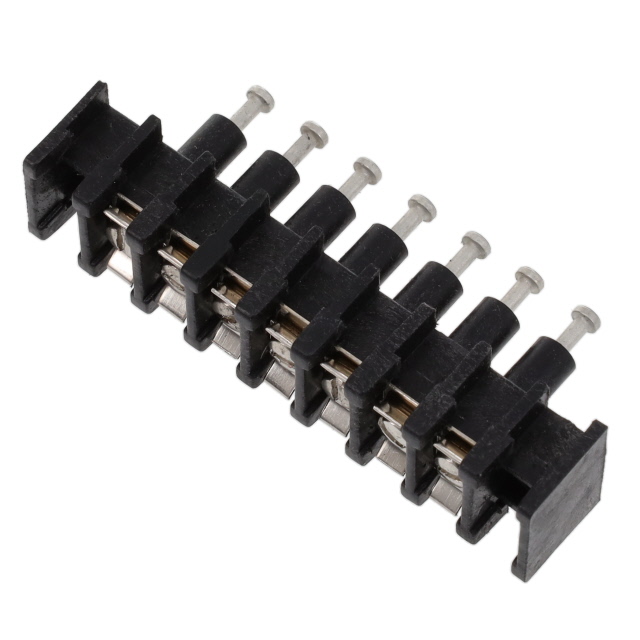

CONN BARRIER STRIP 7CIRC 0.25"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SEIFCX-7

Active

Curtis Industries

CONN BARRIER STRIP 7CIRC 0.25"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SEIFCX-7	SEIFCX Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	Solder Turret, Insulated	Solder Turret, Insulated
Current Rating (Amps)	5 A	5 A
Features	Flange	Flange
Material - Insulation	Polyphenylene Oxide (PPO)	Polyphenylene Oxide (PPO)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel, Chassis	Panel, Chassis
Number of Circuits	7	2 - 16
Number of Rows	1	1
Number of Wire Entries	7	2 - 16
Operating Temperature	110 °C	110 °C
Pitch [x]	0.25 in	0.25 in
Pitch [x]	6.35 mm	6.35 mm
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Nickel	Nickel
Terminal Screw Material	Brass	Brass
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	16 AWG	16 AWG

SEIFCX Series

CONN BARRIER STRIP 16CIRC 0.25"

Part	Pitch [x]	Pitch [x]	Barrier Type	Current Rating (Amps)	Bottom Termination	Operating Temperature	Number of Wire Entries	Top Termination	Terminal Screw Finish	Wire Gauge [Max]	Wire Gauge [Min]	Number of Circuits	Mounting Type	Terminal Screw Material	Features	Terminal Block Type	Material - Insulation	Number of Rows	Material Flammability Rating
Curtis Industries SEIFCX-16	0.25 in	6.35 mm	2 Wall (Dual)	5 A	Solder Turret, Insulated	110 °C	16	Screws with Captive Plate	Nickel	22 AWG	16 AWG	16	Chassis, Panel	Brass	Flange	Barrier Block	Polyphenylene Oxide (PPO)	1	UL94 V-0
Curtis Industries SEIFCX-6	0.25 in	6.35 mm	2 Wall (Dual)	5 A	Solder Turret, Insulated	110 °C	6	Screws with Captive Plate	Nickel	22 AWG	16 AWG	6	Chassis, Panel	Brass	Flange	Barrier Block	Polyphenylene Oxide (PPO)	1	UL94 V-0
Curtis Industries SEIFCX-2	0.25 in	6.35 mm	2 Wall (Dual)	5 A	Solder Turret, Insulated	110 °C	2	Screws with Captive Plate	Nickel	22 AWG	16 AWG	2	Chassis, Panel	Brass	Flange	Barrier Block	Polyphenylene Oxide (PPO)	1	UL94 V-0
Curtis Industries SEIFCX-12	0.25 in	6.35 mm	2 Wall (Dual)	5 A	Solder Turret, Insulated	110 °C	12	Screws with Captive Plate	Nickel	22 AWG	16 AWG	12	Chassis, Panel	Brass	Flange	Barrier Block	Polyphenylene Oxide (PPO)	1	UL94 V-0
Curtis Industries SEIFCX-10	0.25 in	6.35 mm	2 Wall (Dual)	5 A	Solder Turret, Insulated	110 °C	10	Screws with Captive Plate	Nickel	22 AWG	16 AWG	10	Chassis, Panel	Brass	Flange	Barrier Block	Polyphenylene Oxide (PPO)	1	UL94 V-0
Curtis Industries SEIFCX-7	0.25 in	6.35 mm	2 Wall (Dual)	5 A	Solder Turret, Insulated	110 °C	7	Screws with Captive Plate	Nickel	22 AWG	16 AWG	7	Chassis, Panel	Brass	Flange	Barrier Block	Polyphenylene Oxide (PPO)	1	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SEIFCX Series

7 Circuit 0.250" (6.35mm) Barrier Block Connector Screws with Captive Plate
