UM3865P

Active

Union Semiconductor International Limited

8V 2A LOAD SWITCH

Search across all available documentation for this part.

Active

Union Semiconductor International Limited

8V 2A LOAD SWITCH

Technical Specifications

Parameters and characteristics for this part

8V 2A LOAD SWITCH

Part	Package / Case	Features	Number of Outputs	Current - Output (Max) [Max]	Supplier Device Package	Switch Type	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Output Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Interface	Output Type	Input Type	Rds On (Typ)	Voltage - Supply (Vcc/Vdd)	Ratio - Input:Output [custom]

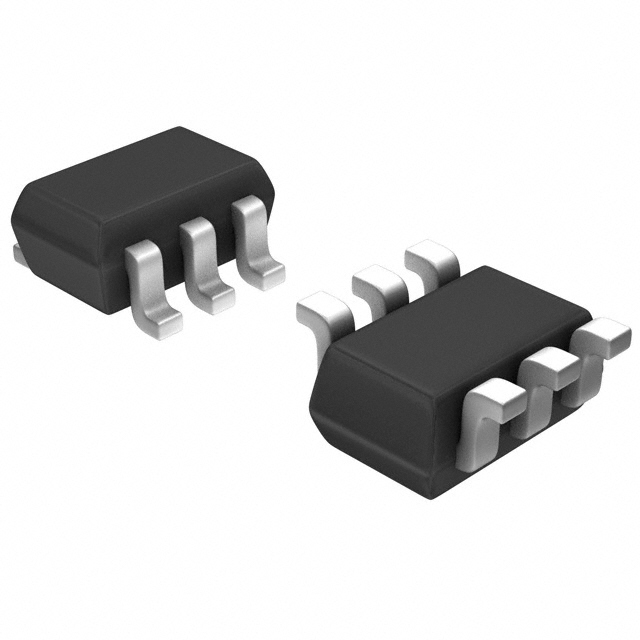

Union Semiconductor International Limited UM3865P	6-TSSOP, SC-88, SOT-363	Slew Rate Controlled	1	1 A	SOT-363	General Purpose	Surface Mount	1.8 V	8 V	High Side	85 °C	-40 °C	On/Off	P-Channel	Non-Inverting	300 mOhm		1:1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Switch/Driver 1:1 P-Channel 1A SOT-363
