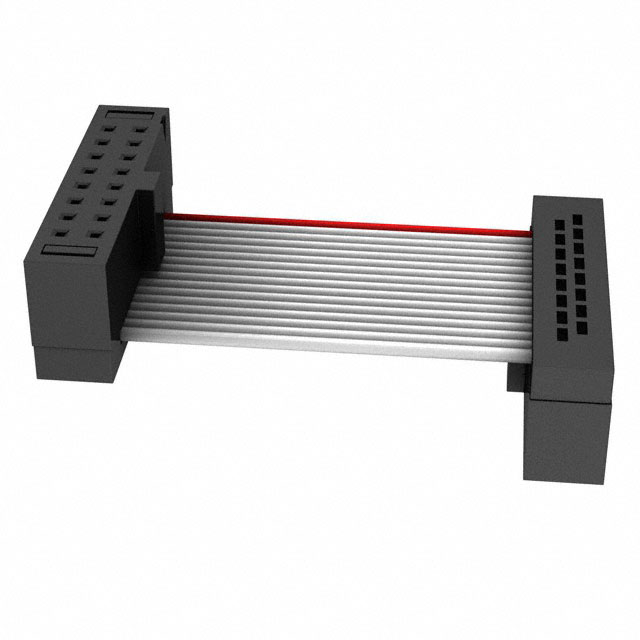

FFSD-08-D-17.30-01-N-R

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FFSD-08-D-17.30-01-N-R

Active

Samtec Inc.

.050 X .050 C.L. FEMALE IDC ASSE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFSD-08-D-17.30-01-N-R

Cable Termination	IDC
Connector Type	Socket to Socket, Reversed
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Polarizing Key, Reverse Wiring
Length [x]	1.44 '
Length [x]	439.42 mm
Number of Positions	16
Number of Rows	2
Pitch - Cable	0.64 mm
Pitch - Cable [x]	0.025 in
Pitch - Connector	0.05 in
Pitch - Connector	1.27 mm
Shielding	Unshielded

FFSD-08 Series

...

Part	Number of Rows	Length	Length	Length	Contact Finish	Shielding	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Pitch - Cable [x]	Pitch - Cable	Features	Cable Termination	Number of Positions	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Length	Length [x]
Samtec Inc. FFSD-08-D-04.80-01-N-R	2	4.8 "	0.4 '	121.92 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket Reversed	0.025 in	0.64 mm	Polarizing Key	IDC	16	0.05 in	1.27 mm
Samtec Inc. FFSD-08-D-39.37-01-N	2				Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket	0.025 in	0.64 mm	Polarizing Key	IDC	16	0.05 in	1.27 mm	1 m	3.28 ft
Samtec Inc. FFSD-08-D-22.00-01-N	2				Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket	0.025 in	0.64 mm	Polarizing Key	IDC	16	0.05 in	1.27 mm	558.8 mm	1.83 ft
Samtec Inc. FFSD-08-D-17.30-01-N-R	2				Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket Reversed	0.025 in	0.64 mm	Polarizing Key Reverse Wiring	IDC	16	0.05 in	1.27 mm	439.42 mm	1.44 '
Samtec Inc. FFSD-08-S-06.00-01-N-RW	2	6 "		152.4 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Cable	0.025 in	0.64 mm	Polarizing Key Reverse Wiring	IDC	16	0.05 in	1.27 mm			0.5 '
Samtec Inc. FFSD-08-D-02.50-01-N-R	2				Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket Reversed	0.025 in	0.64 mm	Polarizing Key Reverse Wiring	IDC	16	0.05 in	1.27 mm	63.5 mm	2.496 in		2.5 in
Samtec Inc. FFSD-08-D-66.00-01-N	2		5.5 ft	1.68 m	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket	0.025 in	0.64 mm	Polarizing Key	IDC	16	0.05 in	1.27 mm
Samtec Inc. FFSD-08-D-19.70-01-N	2				Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket	0.025 in	0.64 mm	Polarizing Key	IDC	16	0.05 in	1.27 mm	500.38 mm	1.64 ft
Samtec Inc. FFSD-08-D-07.87-01-N-RW	2	7.87 in	0.656 ft	200 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket	0.025 in	0.64 mm	Polarizing Key Reverse Wiring	IDC	16	0.05 in	1.27 mm
Samtec Inc. FFSD-08-D-19.69-01-N	2		1.64 ft	500.13 mm	Gold	Unshielded	10 Áin	0.25 Ám	Socket to Socket	0.025 in	0.64 mm	Polarizing Key	IDC	16	0.05 in	1.27 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.85

Description

General part information

FFSD-08 Series

16 Position Cable Assembly Rectangular Socket to Socket, Reversed 1.44' (439.42mm)

Documents

Technical documentation and resources
