UTS6FC14E5S

Active

Souriau-Sunbank by Eaton

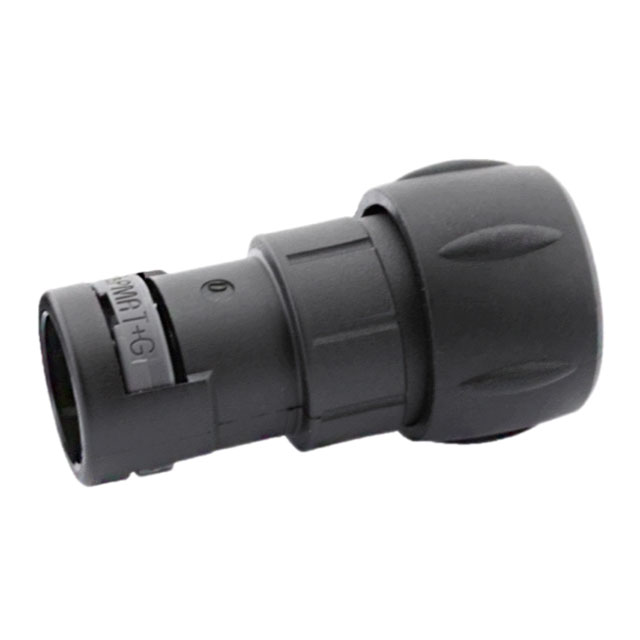

CONN PLUG FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

UTS6FC14E5S

Active

Souriau-Sunbank by Eaton

CONN PLUG FMALE 5P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 49.94

Description

General part information

UTS6F Series

5 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UTS6FC14E5S	UTS6F Series

Applications	Instrumentation, Energy, Lighting, Telecommunications	Instrumentation, Energy, Lighting, Telecommunications
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Color	Black	Black
Connector Type	Female Sockets, Plug	Plug, Male Pins, Plug Housing, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	16 Áin	16 Áin
Contact Finish Thickness - Mating	0.41 Ám	0.41 Ám
Contact Material	Brass	Brass
Contact Shape	-	Circular
Contact Size	-	8 - 20
Contact Type	-	Crimp
Current Rating (Amps)	12 A	4 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell, UV Resistant, Conduit Adapter, Coupling Nut	Backshell, UV Resistant, Conduit Adapter, Coupling Nut
Housing Color	-	Black
Ingress Protection	IP68, IP69K	IP68, IP69K
Insert Material	Polychloroprene	Polychloroprene
Material Flammability Rating	UL94 HB	UL94 HB, UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	-	2 - 23
Number of Positions	-	1
Number of Positions	-	6
Number of Positions	-	3
Number of Positions	-	1
Number of Positions	-	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	N	N
Primary Material	Plastic	Plastic
Shell Size - Insert	14-5	12-8, 14-12, 12-4, 12-3, 12-2, 14-5, 14-2
Shell Size - Insert	-	14 - 32
Shell Size - Insert	-	7 - 18
Shell Size - Insert	-	19 - 23
Shell Size - Insert	-	14 - 18
Shielding	Unshielded	Unshielded
Type	-	For Female Sockets, For Male Pins
Voltage Rating	600 V	250 - 650 VDC

UTS6F Series

CONN PLUG MALE 8P GOLD SLDR CUP

Part	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Connector Type	Mounting Type	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shielding	Shell Size - Insert	Color	Voltage Rating	Fastening Type	Insert Material	Orientation	Number of Positions	Contact Finish - Mating	Features	Contact Material	Applications	Current Rating (Amps)	Contact Shape	Type	Note	Contact Size	Contact Type	Housing Color	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions [custom]	Number of Positions [custom]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Souriau-Sunbank by Eaton UTS6FC12E8P	IP68, IP69K	16 Áin	0.41 Ám	UL94 HB	Male Pins, Plug	Free Hanging (In-Line)	Nylon, Polyamide (PA)	-40 °C	105 ░C	Plastic	Unshielded	12-8	Black	250 VDC	Bayonet Lock	Polychloroprene	N	8	Gold	Backshell, Conduit Adapter, Coupling Nut, UV Resistant	Brass	Energy, Instrumentation, Lighting, Telecommunications	4.5 A
Souriau-Sunbank by Eaton UTS6FC1412S	IP68, IP69K			UL94 V-0	Plug Housing	Free Hanging (In-Line)		-40 °C	105 ░C		Unshielded	14-12			Bayonet Lock		N	12		Backshell, Coupling Nut				Circular	For Female Sockets	Contacts Not Included	16	Crimp	Black
Souriau-Sunbank by Eaton UTS6FC12E10P	IP68, IP69K	16 Áin	0.41 Ám	UL94 HB	Male Pins, Plug	Free Hanging (In-Line)	Nylon, Polyamide (PA)	-40 °C	105 ░C	Plastic	Unshielded		Black	250 VDC	Bayonet Lock	Polychloroprene	N	10	Gold	Backshell, Conduit Adapter, Coupling Nut, UV Resistant	Brass	Energy, Instrumentation, Lighting, Telecommunications	4.5 A
Souriau-Sunbank by Eaton UTS6FC128P	IP68, IP69K			UL94 V-0	Plug Housing	Free Hanging (In-Line)		-40 °C	105 ░C		Unshielded	12-8			Bayonet Lock		N	8		Backshell, Coupling Nut				Circular	For Male Pins	Contacts Not Included	16	Crimp	Black
Souriau-Sunbank by Eaton UTS6FC12E10S	IP68, IP69K	16 Áin	0.41 Ám	UL94 HB	Female Sockets, Plug	Free Hanging (In-Line)	Nylon, Polyamide (PA)	-40 °C	105 ░C	Plastic	Unshielded		Black	250 VDC	Bayonet Lock	Polychloroprene	N	10	Gold	Backshell, Conduit Adapter, Coupling Nut, UV Resistant	Brass	Energy, Instrumentation, Lighting, Telecommunications	4.5 A
Souriau-Sunbank by Eaton UTS6FC124P	IP68, IP69K			UL94 V-0	Plug Housing	Free Hanging (In-Line)		-40 °C	105 ░C		Unshielded	12-4			Bayonet Lock		N	4		Backshell, Coupling Nut				Circular	For Male Pins	Contacts Not Included	16	Crimp	Black
Souriau-Sunbank by Eaton UTS6FC147S	IP68, IP69K			UL94 V-0	Plug Housing	Free Hanging (In-Line)		-40 °C	105 ░C		Unshielded				Bayonet Lock		N			Backshell, Coupling Nut				Circular	For Female Sockets	Contacts Not Included	16	Crimp	Black	14	7	1	6
Souriau-Sunbank by Eaton UTS6FC12E4S	IP68, IP69K	16 Áin	0.41 Ám	UL94 HB	Female Sockets, Plug	Free Hanging (In-Line)	Nylon, Polyamide (PA)	-40 °C	105 ░C	Plastic	Unshielded	12-4	Black	500 V	Bayonet Lock	Polychloroprene	N	4	Gold	Backshell, Conduit Adapter, Coupling Nut, UV Resistant	Brass	Energy, Instrumentation, Lighting, Telecommunications	10 A
Souriau-Sunbank by Eaton UTS6FC12E4P	IP68, IP69K	16 Áin	0.41 Ám	UL94 HB	Male Pins, Plug	Free Hanging (In-Line)	Nylon, Polyamide (PA)	-40 °C	105 ░C	Plastic	Unshielded	12-4	Black	500 V	Bayonet Lock	Polychloroprene	N	4	Gold	Backshell, Conduit Adapter, Coupling Nut, UV Resistant	Brass	Energy, Instrumentation, Lighting, Telecommunications	10 A
Souriau-Sunbank by Eaton UTS6FC1419S	IP68, IP69K			UL94 V-0	Plug Housing	Free Hanging (In-Line)		-40 °C	105 ░C		Unshielded				Bayonet Lock		N	19		Backshell, Coupling Nut				Circular	For Female Sockets	Contacts Not Included	20	Crimp	Black					19	14
