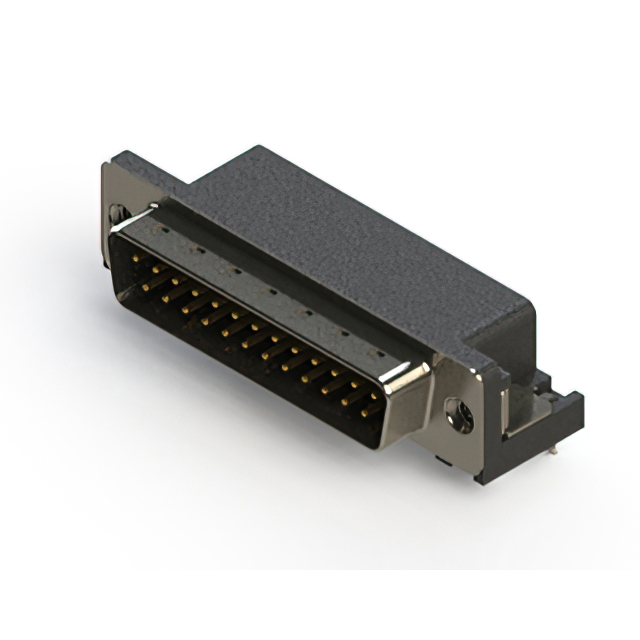

629-025-640-532

Active

EDAC Inc.

629 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-025-640-532

Active

EDAC Inc.

629 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-025-640-532

Backset Spacing	0.409 in
Backset Spacing	10.4 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

629-025 Series

Part	Contact Finish	Color	Flange Feature	Dielectric Material	Contact Material	Mounting Type	Number of Rows	Contact Type	Connector Type	Shell Material, Finish	Connector Style	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current Rating (Amps)	Material Flammability Rating	Backset Spacing	Backset Spacing	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 629-025-240-543	Gold	Black	Female Screwlock (4-40) Mating Side	Polyester Thermoplastic	Copper Alloy	Panel Mount Right Angle Through Hole	2	Signal	Male Pins Plug	Nickel Plated Steel	D-Sub	Flash	-55 °C	125 °C	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	UL94 V-0	0.409 in	10.4 mm	B DB	3	Solder
EDAC Inc. 629-025-640-031	Gold	Black	Housing/Shell (Unthreaded)	Polyester Thermoplastic	Copper Alloy	Panel Mount Right Angle Through Hole	2	Signal	Male Pins Plug	Nickel Plated Steel	D-Sub		-55 °C	85 °C	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	UL94 V-0	0.409 in	10.4 mm	B DB	3	Solder	0.76 Ám	30 Áin
EDAC Inc. 629-025-640-532	Gold	Black	Housing/Shell (4-40)	Polyester Thermoplastic	Copper Alloy	Panel Mount Right Angle Through Hole	2	Signal	Male Pins Plug	Nickel Plated Steel	D-Sub		-55 °C	125 °C	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	UL94 V-0	0.409 in	10.4 mm	B DB	3	Solder	0.76 Ám	30 Áin
EDAC Inc. 629-025-240-511	Gold	Black	Housing/Shell (Unthreaded)	Polyester Thermoplastic	Copper Alloy	Panel Mount Right Angle Through Hole	2	Signal	Male Pins Plug	Nickel Plated Steel	D-Sub	Flash	-55 °C	125 °C	Grounding Indents Mounting Brackets Shielded	3 A	UL94 V-0	0.409 in	10.4 mm	B DB	3	Solder
EDAC Inc. 629-025-240-532	Gold	Black	Housing/Shell (4-40)	Polyester Thermoplastic	Copper Alloy	Panel Mount Right Angle Through Hole	2	Signal	Male Pins Plug	Nickel Plated Steel	D-Sub	Flash	-55 °C	125 °C	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	UL94 V-0	0.409 in	10.4 mm	B DB	3	Solder
EDAC Inc. 629-025-240-533	Gold	Black	Female Screwlock (4-40) Mating Side	Polyester Thermoplastic	Copper Alloy	Panel Mount Right Angle Through Hole	2	Signal	Male Pins Plug	Nickel Plated Steel	D-Sub	Flash	-55 °C	125 °C	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	UL94 V-0	0.409 in	10.4 mm	B DB	3	Solder
EDAC Inc. 629-025-340-511	Gold	Black	Housing/Shell (Unthreaded)	Polyester Thermoplastic	Copper Alloy	Panel Mount Right Angle Through Hole	2	Signal	Male Pins Plug	Nickel Plated Steel	D-Sub		-55 °C	125 °C	Grounding Indents Mounting Brackets Shielded	3 A	UL94 V-0	0.409 in	10.4 mm	B DB	3	Solder	0.38 µm	15 µin
EDAC Inc. 629-025-340-041	Gold	Black	Housing/Shell (Unthreaded)	Polyester Thermoplastic	Copper Alloy	Panel Mount Right Angle Through Hole	2	Signal	Male Pins Plug	Nickel Plated Steel	D-Sub		-55 °C	85 °C	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	UL94 V-0	0.409 in	10.4 mm	B DB	3	Solder	0.38 µm	15 µin
EDAC Inc. 629-025-340-011	Gold	Black	Housing/Shell (Unthreaded)	Polyester Thermoplastic	Copper Alloy	Panel Mount Right Angle Through Hole	2	Signal	Male Pins Plug	Nickel Plated Steel	D-Sub		-55 °C	85 °C	Grounding Indents Mounting Brackets Shielded	3 A	UL94 V-0	0.409 in	10.4 mm	B DB	3	Solder	0.38 µm	15 µin
EDAC Inc. 629-025-640-045	Gold	Black	Housing/Shell (M3)	Polyester Thermoplastic	Copper Alloy	Panel Mount Right Angle Through Hole	2	Signal	Male Pins Plug	Nickel Plated Steel	D-Sub		-55 °C	85 °C	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	UL94 V-0	0.409 in	10.4 mm	B DB	3	Solder	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 3.44

Description

General part information

629-025 Series

25 Position D-Sub Plug, Male Pins Connector
