BMA020-SHUTL

Obsolete

Bosch Sensortec

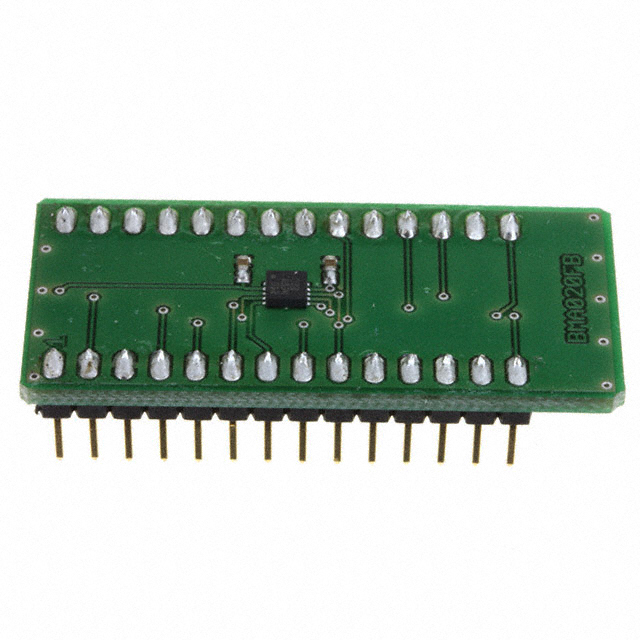

SHUTTLE BOARD BMA020

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMA020

Technical Specifications

Parameters and characteristics commom to parts in this series

ACCELEROMETER 2-8G I2C/SPI 12LGA

Part	Axis [z]	Axis [y]	Axis [x]	Type	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Sensitivity (LSB/g)	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Output Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Bandwidth [Max]	Bandwidth [Min]	Function	Contents	Utilized IC / Part
Bosch Sensortec BMA020	Z	Y	X	Digital	4 g, 8 g	-2 g	2 g	64 LSB/g, 256 LSB/g	12-VFLGA	3.6 V	2 V	12-LGA (3x3)	I2C, SPI	Surface Mount	85 °C	-40 °C	750 Hz	25 Hz
Bosch Sensortec BMA020-SHUTL				Sensor															Accelerometer	Board(s)	BMA020

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMA020 Accelerometer Sensor Platform Evaluation Expansion Board

Technical documentation and resources
