BMA250E-SHUTL

Obsolete

Bosch Sensortec

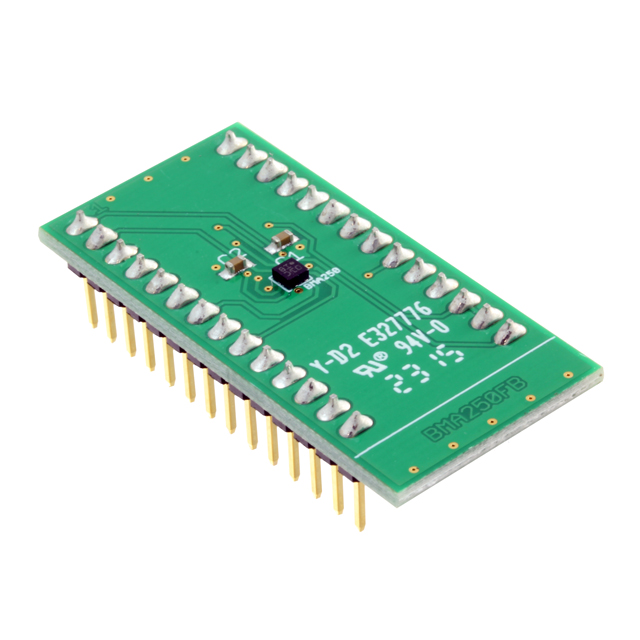

SHUTTLE BOARD BMA250E

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMA250E

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BMA250E-SHUTL	BMA250 Series

Acceleration Range	-	4 - 16 g
Acceleration Range	-	-2 g
Acceleration Range	-	2 g
Axis	-	Z
Axis	-	Y
Axis	-	X
Bandwidth	-	8 Hz
Bandwidth	-	1 kHz
Contents	Board(s)	Board(s)
Features	-	Sleep Mode, Temperature Sensor, Adjustable Bandwidth, Selectable Scale, Selectable Low Pass Filter
Function	Accelerometer	Accelerometer
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, SPI
Package / Case	-	12-VFLGA
Sensitivity (LSB/g)	-	16 - 256 LSB/g
Supplier Device Package	-	12-LGA (2x2)
Type	Sensor	Sensor, Digital
Utilized IC / Part	BMA250E	BMA250, BMA250E
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.62 V

SHUTTLE BOARD BMA250

Part	Type	Function	Contents	Utilized IC / Part	Sensitivity (LSB/g)	Mounting Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Axis [z]	Axis [y]	Axis [x]	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Supplier Device Package	Bandwidth [Min]	Bandwidth [Max]	Output Type	Features
Bosch Sensortec BMA250 SHUTL	Sensor	Accelerometer	Board(s)	BMA250
Bosch Sensortec BMA250E	Digital				16 LSB/g, 256 LSB/g	Surface Mount	12-VFLGA	85 °C	-40 °C	3.6 V	1.62 V	Z	Y	X	4 g, 8 g, 16 g	-2 g	2 g	12-LGA (2x2)	8 Hz	1 kHz	I2C, SPI	Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor
Bosch Sensortec BMA250E-SHUTL	Sensor	Accelerometer	Board(s)	BMA250E
Bosch Sensortec BMA250	Digital				16 LSB/g, 256 LSB/g	Surface Mount	12-VFLGA	85 °C	-40 °C	3.6 V	1.62 V	Z	Y	X	4 g, 8 g, 16 g	-2 g	2 g	12-LGA (2x2)	8 Hz	1 kHz	I2C, SPI	Adjustable Bandwidth, Selectable Low Pass Filter, Selectable Scale

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMA250E Accelerometer Sensor Platform Evaluation Expansion Board
