APR211B064000E00G

Active

AMPHENOL ANYTEK

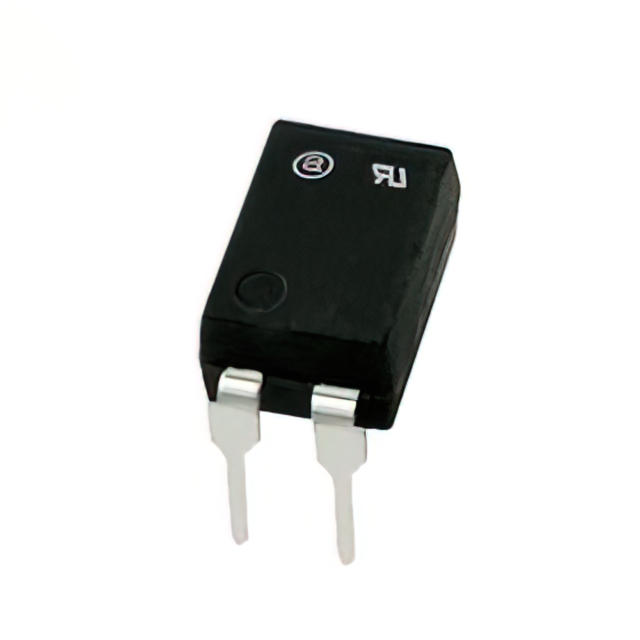

RELAY MOS 4 PIN DIP 60V AC/DC

Search across all available documentation for this part.

Active

AMPHENOL ANYTEK

RELAY MOS 4 PIN DIP 60V AC/DC

Technical Specifications

Parameters and characteristics commom to parts in this series

RELAY MOS 6 PIN DIP 60V AC/DC

Part	Approval Agency	Output Type	On-State Resistance (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Load Current	Supplier Device Package	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Circuit
AMPHENOL ANYTEK APR211A066000E00G	cURus, UR	AC, DC	1.4 Ohms	1.5 VDC	0.9 V	550 mA	6-DIP	0 V	60 V	Through Hole	6-DIP	0.3 in	7.62 mm	85 °C	-40 °C
AMPHENOL ANYTEK APR211B064000E00G	cURus, UR	AC, DC	1.4 Ohms	1.5 VDC	0.9 V	550 mA	4-DIP	0 V	60 V	Through Hole	4-DIP (0.300", 7.62mm)			85 °C	-40 °C	SPST-NC (1 Form B)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NC (1 Form B) 4-DIP (0.300", 7.62mm)
