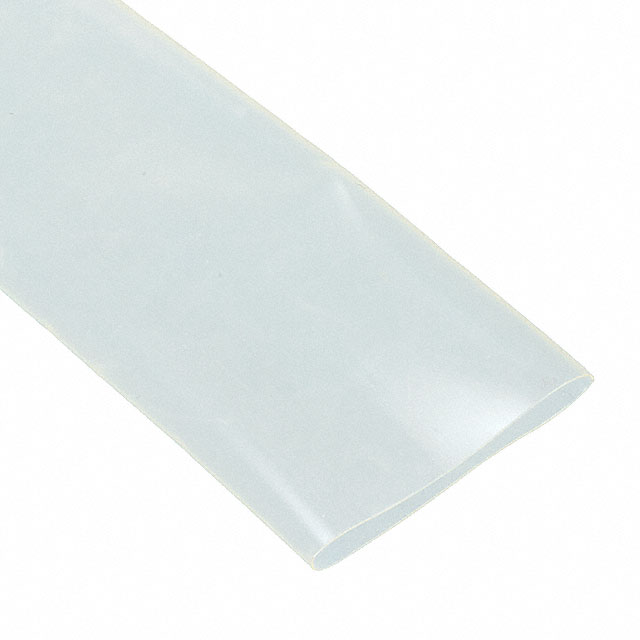

RT-375-2-X-SP

Obsolete

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING ST CROSS LINKED FLUOROPOLYMER CLEAR THIN SPOOL

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

HEAT SHRINK TUBING ST CROSS LINKED FLUOROPOLYMER CLEAR THIN SPOOL

Technical Specifications

Parameters and characteristics for this part

Specification	RT-375-2-X-SP

Color	Clear
Features	Chemical Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	25.4 mm
Inner Diameter - Recovered [diameter]	1 in
Inner Diameter - Supplied [diameter]	50.8 mm
Inner Diameter - Supplied [diameter]	2 in
Length [x]	30.5 m
Length [x]	100 ft
Material	Fluoropolymer, Irradiated
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.02 in
Recovered Wall Thickness	0.51 mm
Shrink Temperature	125 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

Part	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Material	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Type	Color	Shrink Temperature	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrinkage Ratio	Length	Length
TE Connectivity Raychem Cable Protection RT-375-2-X-SP	Chemical Resistant Flame Retardant	25.4 mm	1 in	0.02 in	0.51 mm	Fluoropolymer Irradiated	-55 °C	150 °C	30.5 m	100 ft	Tubing Flexible	Clear	125 °C	50.8 mm	2 in	2 to 1
TE Connectivity Raychem Cable Protection RT-375-3/8-X-STK	Chemical Resistant Flame Retardant	4.75 mm	0.187 in	0.012 in	0.3 mm	Fluoropolymer Irradiated	-55 °C	150 °C	1.22 m	4 ft	Tubing Flexible	Clear	125 °C	9.53 mm	0.375 in	2 to 1
TE Connectivity Raychem Cable Protection RT-375-3/4-X-SP	Chemical Resistant Flame Retardant	9.53 mm	0.375 in	0.017 in	0.43 mm	Fluoropolymer Irradiated	-55 °C	150 °C			Tubing Flexible	Clear	125 °C			2 to 1	246.1 ft 3000 "	75 m 76.2 m
TE Connectivity Raychem Cable Protection RT-375-1/16-X-SP	Chemical Resistant Flame Retardant	0.79 mm	0.031 in	0.01 in	0.25 mm	Fluoropolymer Irradiated	-55 °C	150 °C			Tubing Flexible	Clear	125 °C	1.6 mm	0.063 in	2 to 1	3000 ft	914.4 m
TE Connectivity Raychem Cable Protection RT-375-1-1/2-X-SP	Chemical Resistant Flame Retardant	19.05 mm	0.75 "	0.02 in	0.51 mm	Fluoropolymer Irradiated	-55 °C	150 °C			Tubing Flexible	Clear	125 °C	38.1 mm	1.5 in	2 to 1	246.1 ft	75 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Clear, 2:1, Single Wall, Shrinks To 25.4 mm [1 in], Crosslinked Fluoropolymer, 50.8 mm [2 in] Expanded Inside, Highly Flame-Retardant, RAYCHEM RT-375
