KG10.6101.107
ActiveSCHURTER Inc.

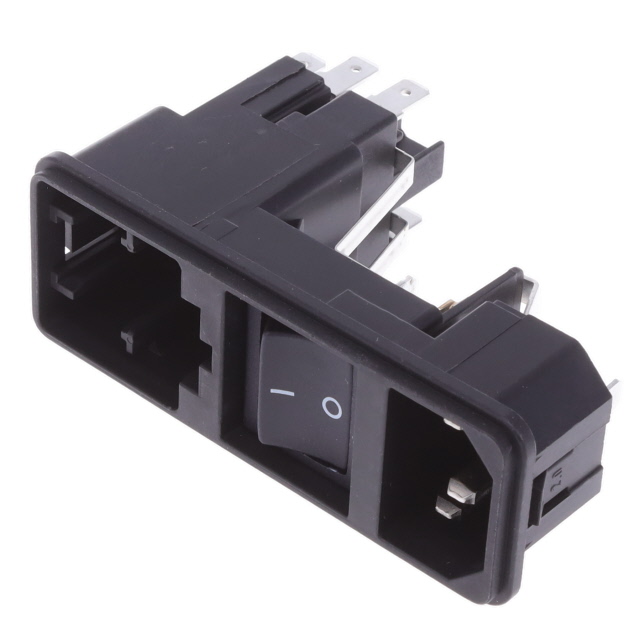

PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KG10.6101.107
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | KG10.6101.107 | KG10.6101 Series |
|---|---|---|
| Accomodates a Fuse | True | True |
| Approval Agency | UL, ENEC, CSA | UL, ENEC, CSA |
| Connector Style | IEC 320-C14 | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A | 10 A |
| Features | Voltage Selector | Voltage Selector |
| Filter Type | Unfiltered - Commercial | Unfiltered - Commercial |
| Fuse Holder, Drawer | Drawer Sold Separate | Drawer Sold Separate |
| Ingress Protection | IP40 | IP40 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In | Panel Mount, Snap-In, Flange |
| Panel Cutout Dimensions [x] | 27.5 mm | 27.5 mm |
| Panel Cutout Dimensions [y] | 80 mm | 80 mm |
| Panel Thickness | 2 mm | 2 mm |
| Panel Thickness | 0.079 in | 0.079 in |
| Panel Thickness | - | 0.059 in |
| Panel Thickness | - | 1.5 mm |
| Panel Thickness | - | 2.5 mm |
| Panel Thickness | - | 0.098 in |
| Switch Features | Switch On-Off | Switch On-Off |
| Termination | 0.189 ", 4.8 mm | 0.189 - 4.8 " |
| Termination | Quick Connect | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC | 250 VAC |
KG10.6101 Series
PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Current Rating - Appliance Inlet | Material Flammability Rating | Approval Agency | Accomodates a Fuse | Voltage Rating - Appliance Inlet | Termination | Termination | Ingress Protection | Features | Fuse Holder, Drawer | Switch Features | Filter Type | Connector Style | Mounting Type | Connector Type | Panel Thickness | Panel Thickness | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Thickness [custom] | Panel Thickness [custom] | Panel Thickness [x] | Panel Thickness [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. KG10.6101.107 | 10 A | UL94 V-0 | CSA, ENEC, UL | 250 VAC | 0.189 ", 4.8 mm | Quick Connect | IP40 | Voltage Selector | Drawer Sold Separate | Switch On-Off | Unfiltered - Commercial | IEC 320-C14 | Panel Mount, Snap-In | Receptacle, Male Blades - Module | 2 mm | 0.079 in | 27.5 mm | 80 mm | |||||
SCHURTER Inc. KG10.6101.105 | 10 A | UL94 V-0 | CSA, ENEC, UL | 250 VAC | 0.189 ", 4.8 mm | Quick Connect | IP40 | Voltage Selector | Drawer Sold Separate | Switch On-Off | Unfiltered - Commercial | IEC 320-C14 | Panel Mount, Snap-In | Receptacle, Male Blades - Module | 27.5 mm | 80 mm | 0.059 in | 1.5 mm | |||||
SCHURTER Inc. KG10.6101.109 | 10 A | UL94 V-0 | CSA, ENEC, UL | 250 VAC | 0.189 ", 4.8 mm | Quick Connect | IP40 | Voltage Selector | Drawer Sold Separate | Switch On-Off | Unfiltered - Commercial | IEC 320-C14 | Panel Mount, Snap-In | Receptacle, Male Blades - Module | 27.5 mm | 80 mm | 2.5 mm | 0.098 in | |||||
SCHURTER Inc. KG10.6101.151 | 10 A | UL94 V-0 | CSA, ENEC, UL | 250 VAC | 0.189 ", 4.8 mm | Quick Connect | IP40 | Voltage Selector | Drawer Sold Separate | Switch On-Off | Unfiltered - Commercial | IEC 320-C14 | Flange, Panel Mount | Receptacle, Male Blades - Module | 27.5 mm | 80 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.37 | |
| 50 | $ 25.89 | |||
| 100 | $ 21.70 | |||
Description
General part information
KG10.6101 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
